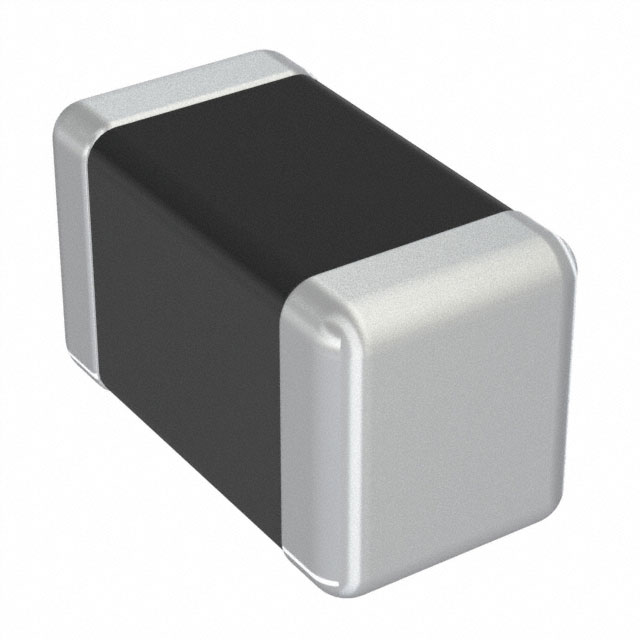

LB3218T220M
FIXED IND 22UH 255MA 490MOHM SMD
Manufacturer: Taiyo YudenIC code: 587-LB3218T220MTR-ND - Tape & Reel (TR) || 587-LB3218T220MCT-ND - Cut Tape (CT) || 587-LB3218T220MDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
22 µH Semi-Shielded Drum Core, Wirewound Inductor 255 mA 490mOhm 1207 (3218 Metric)
Specifications
- Mfr
- Taiyo Yuden
- Type
- Drum Core, Wirewound
- Series
- LB
- Ratings
- -
- Q @ Freq
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Semi-Shielded
- Tolerance
- ±20%
- Inductance
- 22 µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 1207 (3218 Metric)
- Material - Core
- Ferrite
DC Resistance (DCR)490mOhm Current Rating (Amps)255 mA Height - Seated (Max)0.079" (2.00mm) Operating Temperature-40°C ~ 105°C Supplier Device Package1207 (3218 Metric) Frequency - Self Resonant19MHz Current - Saturation (Isat)- Inductance Frequency - Test2.52 MHz Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥0.91000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥0.72800 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥0.59790 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥0.49186 |
| Tape & Reel (TR) | 2,000 | ¥0.46375 |
| Tape & Reel (TR) | 4,000 | ¥0.43722 |
| Tape & Reel (TR) | 6,000 | ¥0.42243 |
| Tape & Reel (TR) | 10,000 | ¥0.40452 |
| Tape & Reel (TR) | 14,000 | ¥0.39315 |
| Tape & Reel (TR) | 20,000 | ¥0.38145 |
| Tape & Reel (TR) | 50,000 | ¥0.35299 |
| Tape & Reel (TR) | 100,000 | ¥0.33293 |
| Tape & Reel (TR) | 200,000 | ¥0.32354 |
