Description

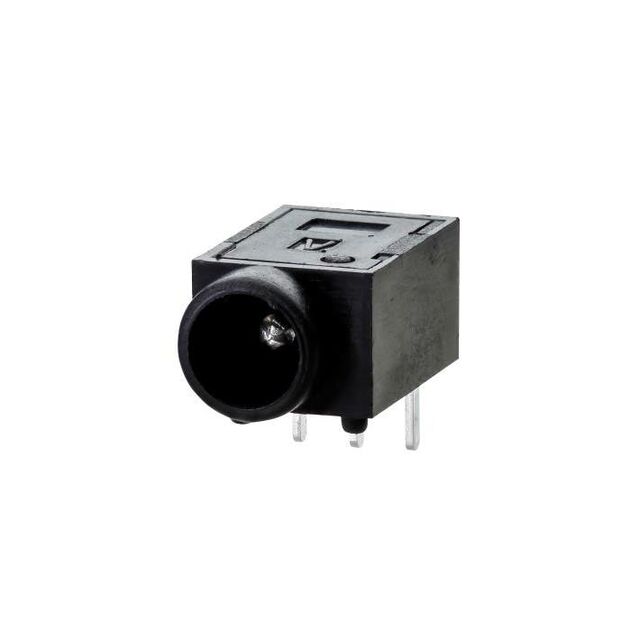

Power Barrel Connector Jack 1.10mm ID (0.043"), 3.50mm OD (0.138") Through Hole, Right Angle
Specifications
- Gender
- Female
- Series
- -
- Includes
- -
- Packaging
- Bag
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Manufacturer
- Linkplex
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Jack
- Actual Diameter
- 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Housing MaterialPolyamide (PA66), Nylon 6/6 Internal Switch(s)Single Switch, Normally Closed Mating Length/Depth0.256" (6.50mm) Current Rating (Amps)3.5 A Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.10mm ID (0.043"), 3.50mm OD (0.138") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥5.39000 |
| Bag | 10 | ¥4.60300 |
| Bag | 25 | ¥4.31240 |
| Bag | 50 | ¥4.10520 |
| Bag | 100 | ¥3.90850 |
| Bag | 250 | ¥3.66308 |
| Bag | 500 | ¥3.48802 |
| Bag | 1,000 | ¥3.32143 |
| Bag | 2,500 | ¥3.11343 |
