Description

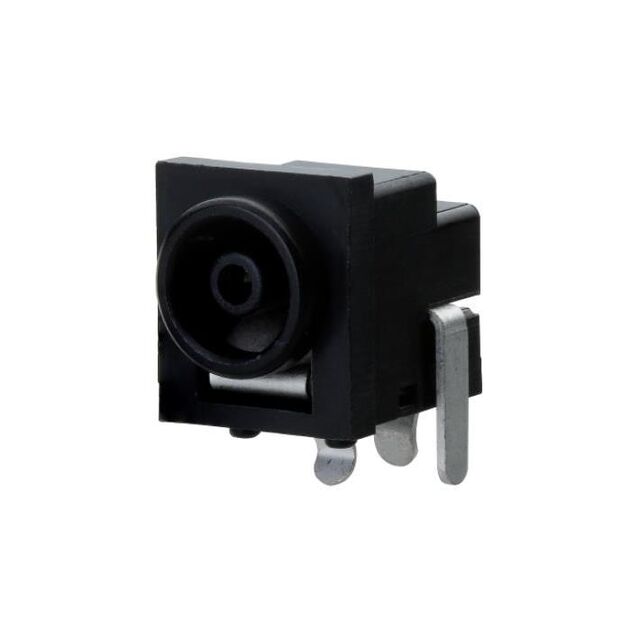

Power Barrel Connector Jack 1.00mm ID (0.039"), 3.30mm ID (0.130"), 5.500mm OD (0.217") EIAJ-4 Through Hole, Right Angle
Specifications
- Gender
- Female
- Series
- -
- Features
- Board Guide
- Includes
- -
- Packaging
- Bag
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Kinked Pin
- Thread Size
- -
- Manufacturer
- Linkplex
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.039" (1.00mm ID), 0.232" (5.90mm OD) Contact MaterialBrass, Copper Alloy Housing MaterialPolybutylene Terephthalate (PBT) Internal Switch(s)Single Switch, Normally Closed Mating Length/Depth0.354" (9.00mm) Operating Temperature-25°C ~ 85°C Contact Material - PlatingTin Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.00mm ID (0.039"), 3.30mm ID (0.130"), 5.500mm OD (0.217") EIAJ-4 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥5.38000 |
| Bag | 10 | ¥4.54800 |
| Bag | 500 | ¥3.45206 |
| Bag | 1,000 | ¥3.28716 |
