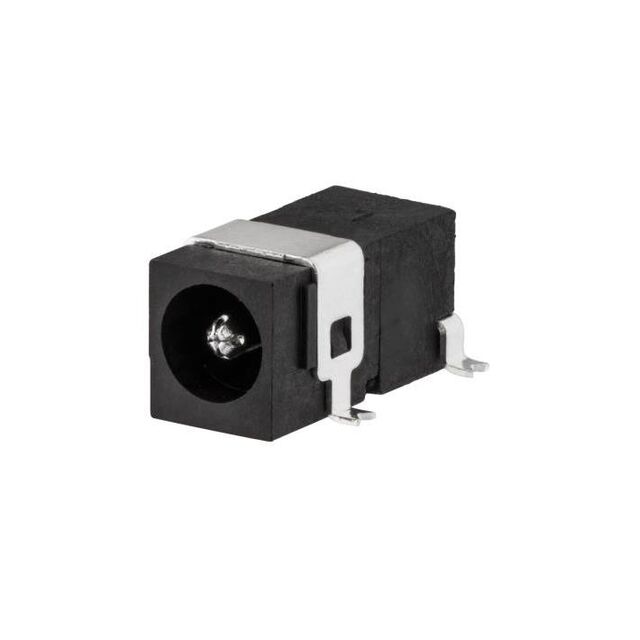

LDC-126D-H-005-1AG-19
CONN PWR JACK 1.7X4MM SOLDER
Manufacturer: LinkplexIC code: 5149-LDC-126D-H-005-1AG-19TR-ND - Tape & Reel (TR) || 5149-LDC-126D-H-005-1AG-19CT-ND - Cut Tape (CT) || 5149-LDC-126D-H-005-1AG-19DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Power Barrel Connector Jack 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2 Surface Mount, Right Angle
Specifications
- Gender
- Female
- Series
- -
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Manufacturer
- Linkplex
- Body Material
- -
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Jack
- Actual Diameter
Housing MaterialPolyamide (PA10T), Nylon 10T Internal Switch(s)Single Switch, Normally Closed Mating Length/Depth0.315" (8.00mm) Current Rating (Amps)2.5 A Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥8.64000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥7.34100 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥6.88280 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥6.55240 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥6.23920 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥5.84800 |
| Tape & Reel (TR) | 750 | ¥5.41151 |
| Tape & Reel (TR) | 1,500 | ¥5.15317 |
| Tape & Reel (TR) | 2,250 | ¥5.00788 |
| Tape & Reel (TR) | 3,750 | ¥4.83067 |
| Tape & Reel (TR) | 5,250 | ¥4.71738 |
| Tape & Reel (TR) | 7,500 | ¥4.60023 |
| Tape & Reel (TR) | 18,750 | ¥4.31255 |
