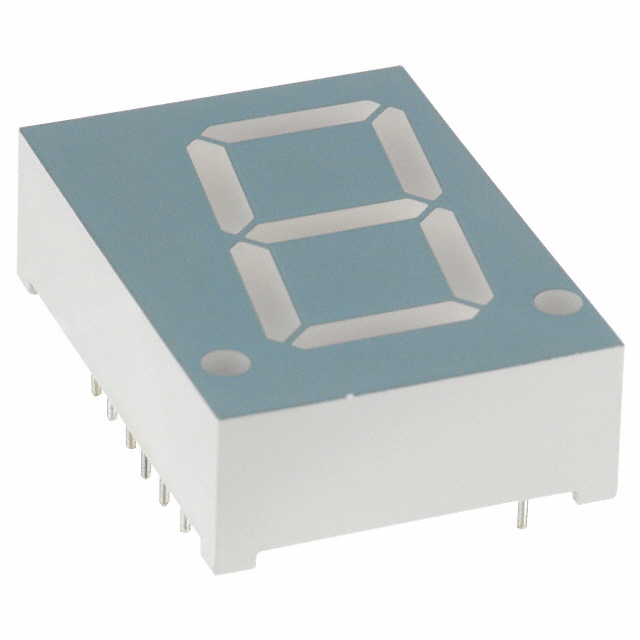

LDS-A813RI
DISPLAY 7-SEG 0.8" SGL YLW 16DIP
Manufacturer: Lumex Opto/Components Inc.IC code: 67-1479-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.1V 10mA 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) 16-DIP (0.600", 15.24mm), 13 Leads
Specifications
- Color
- Yellow
- Series
- -
- Packaging
- Bulk
- Common Pin
- Common Anode
- Part Status
- Active
- Display Type
- 7-Segment
- Manufacturer
- Lumex Opto/Components Inc.
- Current - Test
- 10mA
- Package / Case
- 16-DIP (0.600", 15.24mm), 13 Leads
- Digit/Alpha Size
- 0.80" (20.32mm)
- Size / Dimension
- 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm)
- Wavelength - Peak
- 590nm
- Base Product Number
- LDS-A813
- Millicandela Rating
- 2.5mcd
- Number of Characters
- 1
- Power Dissipation (Max)
- 105mW
- Voltage - Forward (Vf) (Typ)
- 2.1V
