LFCN-113+

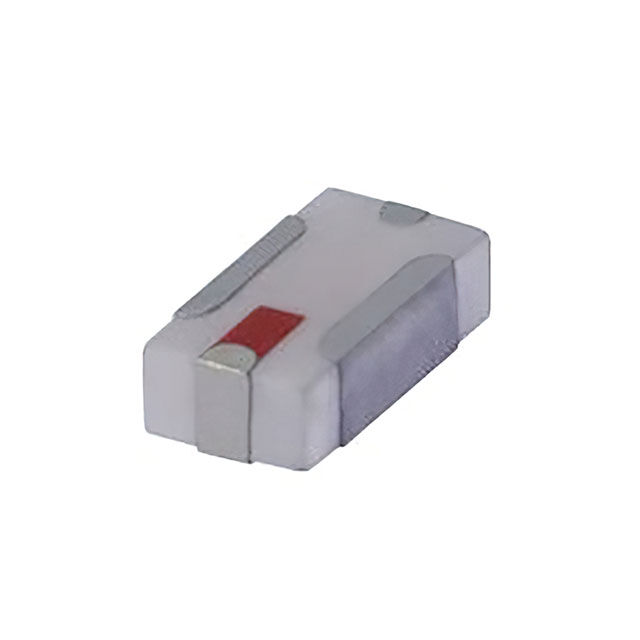

CER FILTER 12.25GHZ LOW PASS
Manufacturer: Mini-CircuitsIC code: 3157-LFCN-113+TR-ND - Tape & Reel (TR) || 3157-LFCN-113+CT-ND - Cut Tape (CT) || 3157-LFCN-113+DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
12.25GHz Low Pass Ceramic Filter 50Ohm 1206 (3216 Metric), 4 PC Pad
Specifications
- Series
- LFCN
- Frequency
- 12.25GHz
- Impedance
- 50Ohm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Filter Type
- Low Pass
- Part Status
- Active
- Height (Max)
- 0.037" (0.94mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 2.5dB
- Package / Case
- 1206 (3216 Metric), 4 PC Pad
- Size / Dimension
- 0.126" L x 0.063" W (3.20mm x 1.60mm)
