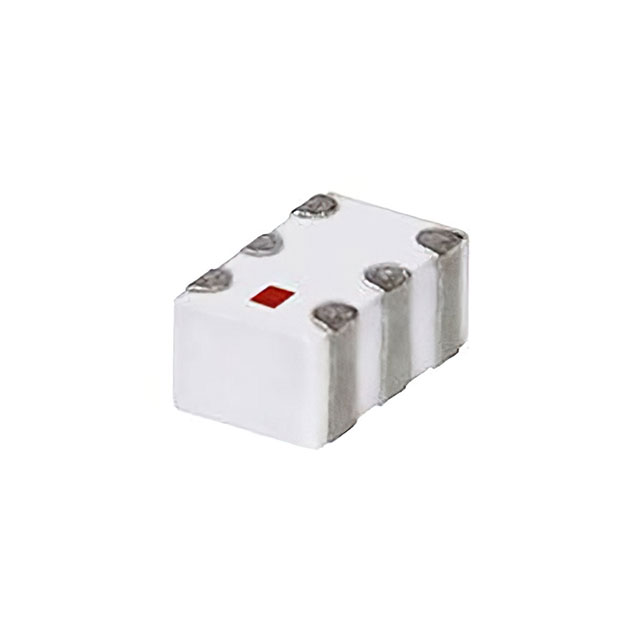

LFCW-272+
CER FILTER 3.2GHZ LOW PASS
Manufacturer: Mini-CircuitsIC code: 3157-LFCW-272+TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.2GHz Cut Off Low Pass Ceramic Filter 50Ohm 0603 (1608 Metric), 6 PC Pad
Specifications
- Series
- LFCW
- Frequency
- 3.2GHz Cut Off
- Impedance
- 50Ohm
- Packaging
- Tape & Reel (TR)
- Filter Type
- Low Pass
- Part Status
- Active
- Height (Max)
- 0.024" (0.61mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 1.2dB
- Package / Case
- 0603 (1608 Metric), 6 PC Pad
- Size / Dimension
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
