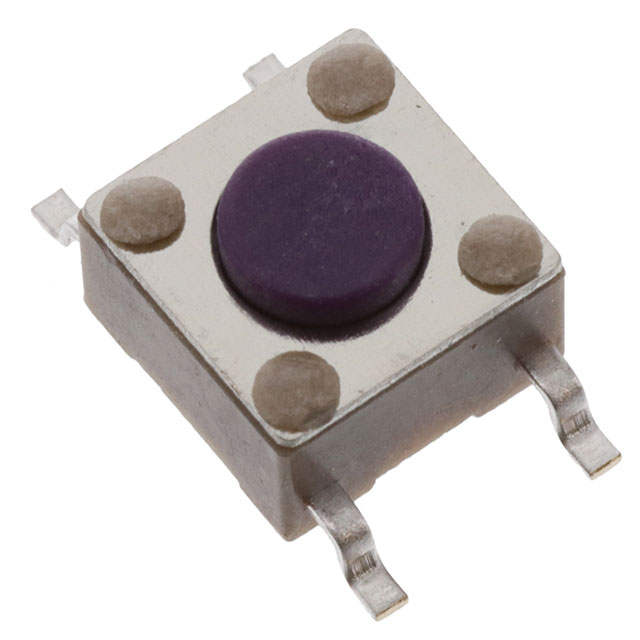

LL3301NF065QG
SWITCH TACTILE SPST-NO 0.05A 12V
Manufacturer: E-SwitchIC code: EG5897TR-ND - Tape & Reel (TR) || EG5897CT-ND - Cut Tape (CT) || EG5897DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- E-Switch
- Series
- LL3301
- Circuit
- SPST-NO
- Outline
- 6.00mm x 6.00mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- -
- Operating Force
- 65gf
Termination StyleGull Wing Base Product NumberLL3301 Actuator OrientationTop Actuated Operating Temperature-30°C ~ 85°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical4.30mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥6.70000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥5.71500 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥5.31600 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥4.74280 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥4.39300 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥4.14906 |
| Tape & Reel (TR) | 1,200 | ¥3.86918 |
| Tape & Reel (TR) | 2,400 | ¥3.67084 |
| Tape & Reel (TR) | 3,600 | ¥3.56441 |
| Tape & Reel (TR) | 6,000 | ¥3.44018 |
| Tape & Reel (TR) | 8,400 | ¥3.36421 |
| Tape & Reel (TR) | 12,000 | ¥3.28862 |
