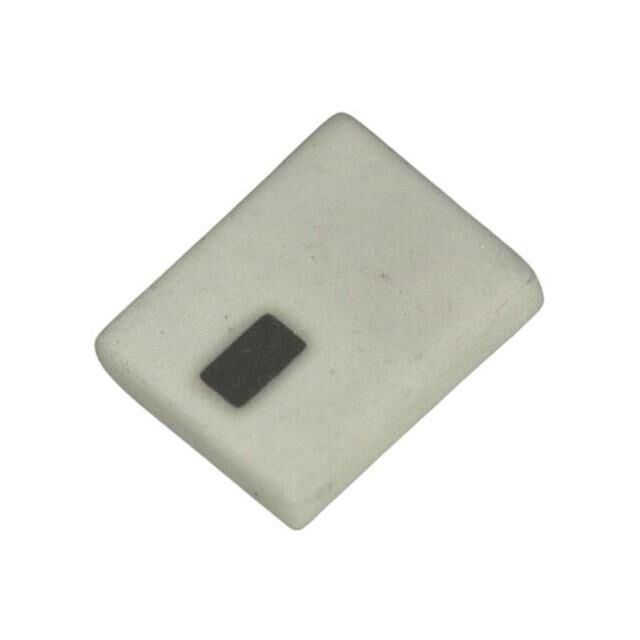

LQD-2520-DHNKA-A1
QUADPLEXER 4G 5G NB-IOT
Manufacturer: Pulse ElectronicsIC code: 553-LQD-2520-DHNKA-A1TR-ND - Tape & Reel (TR) || 553-LQD-2520-DHNKA-A1CT-ND - Cut Tape (CT) || 553-LQD-2520-DHNKA-A1DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Quadplexer 617MHz ~ 960MHz / 3.4GHz ~ 3.8GHz 1008 (2520 Metric)
Specifications
- Type
- Quadplexer
- Grade
- -
- Series
- 2520
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 1008 (2520 Metric)
- Frequency Bands (Low / High)
- 617MHz ~ 960MHz / 3.4GHz ~ 3.8GHz
- Return Loss (Low Band / High Band)
- 10.0dB / 10.0dB
- Low Band Attenuation (min / max dB)
- 15.00dB / 21.50dB
