LSH-3695-005-1AG-19

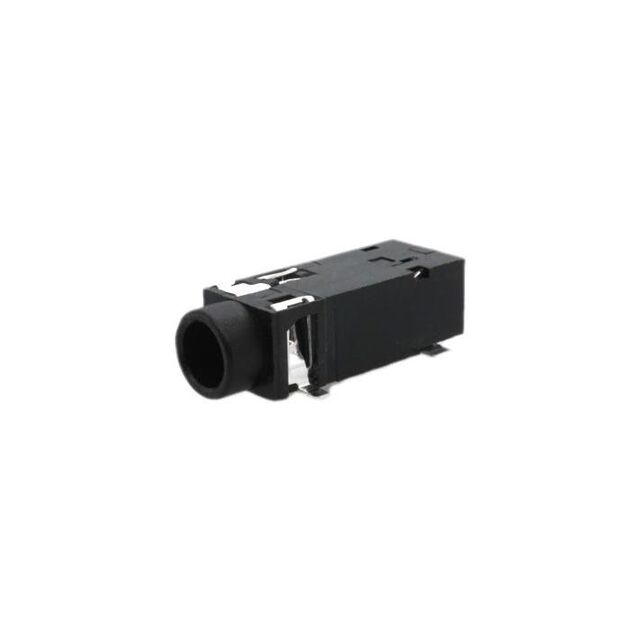

CONN JACK STEREO 3.5MM SMD R/A
Manufacturer: LinkplexIC code: 5149-LSH-3695-005-1AG-19TR-ND - Tape & Reel (TR) || 5149-LSH-3695-005-1AG-19CT-ND - Cut Tape (CT) || 5149-LSH-3695-005-1AG-19DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Specifications
- Mfr
- Linkplex
- Gender
- Female
- Series
- -
- Features
- -
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- -
Mounting TypeSurface Mount, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy Housing MaterialPolyamide (PA10T), Nylon 10T Internal Switch(s)Two Switches Mating Length/Depth0.551" (14.00mm) Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Number of Positions/Contacts3 Conductors, 5 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥9.07000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥7.69200 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥7.21120 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥6.86540 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥6.53690 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥6.12728 |
| Tape & Reel (TR) | 700 | ¥5.69770 |
| Tape & Reel (TR) | 1,400 | ¥5.42566 |
| Tape & Reel (TR) | 2,100 | ¥5.27270 |
| Tape & Reel (TR) | 3,500 | ¥5.08610 |
| Tape & Reel (TR) | 4,900 | ¥4.96684 |
| Tape & Reel (TR) | 7,000 | ¥4.84349 |
| Tape & Reel (TR) | 17,500 | ¥4.54057 |
