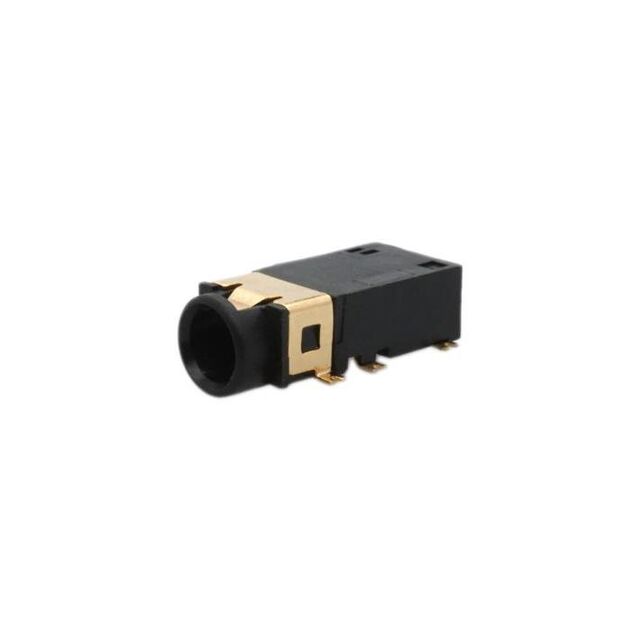

LSH-3956D-005-G-19
CONN JACK STEREO 3.5MM SMD R/A
Manufacturer: LinkplexIC code: 5149-LSH-3956D-005-G-19TR-ND - Tape & Reel (TR) || 5149-LSH-3956D-005-G-19CT-ND - Cut Tape (CT) || 5149-LSH-3956D-005-G-19DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Specifications
- Mfr
- Linkplex
- Gender
- Female
- Series
- -
- Features
- -
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (4 Conductor, TRRS)
- Body Material
- -
Mounting TypeSurface Mount, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialBrass, Copper Alloy Housing MaterialPolyamide (PA10T), Nylon 10T Internal Switch(s)Two Switches Mating Length/Depth0.551" (14.00mm) Operating Temperature-25°C ~ 85°C Contact Material - PlatingGold Number of Positions/Contacts4 Conductors, 6 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥8.47000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥7.17000 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥6.71840 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥6.39500 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥6.08940 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥5.70800 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥5.43524 |
| Tape & Reel (TR) | 1,000 | ¥5.17573 |
| Tape & Reel (TR) | 2,000 | ¥4.92867 |
| Tape & Reel (TR) | 3,000 | ¥4.78970 |
| Tape & Reel (TR) | 5,000 | ¥4.62021 |
| Tape & Reel (TR) | 7,000 | ¥4.51189 |
| Tape & Reel (TR) | 10,000 | ¥4.39985 |
