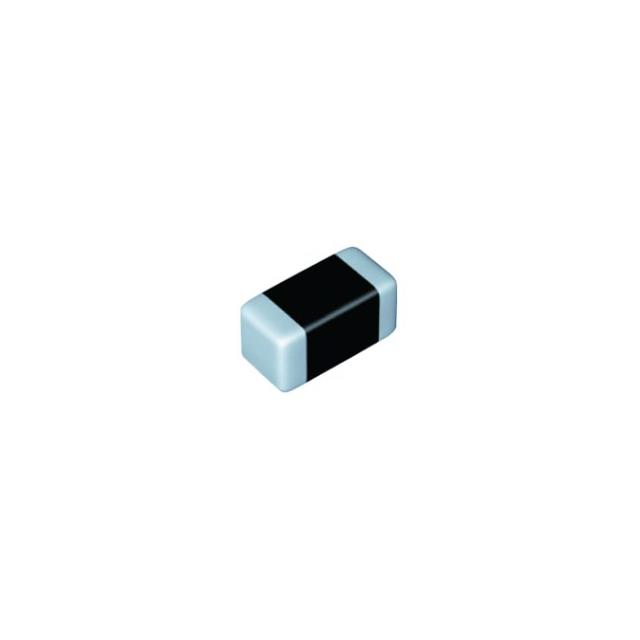

LSQEA201212T100K
FIXED IND 10UH 150MA 0.36OHM SMD
Manufacturer: Taiyo YudenIC code: 587-LSQEA201212T100KTR-ND - Tape & Reel (TR) || 587-LSQEA201212T100KCT-ND - Cut Tape (CT) || 587-LSQEA201212T100KDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
10 µH Semi-Shielded Wirewound Inductor 150 mA 360mOhm 0805 (2012 Metric)
Specifications
- Mfr
- Taiyo Yuden
- Type
- Wirewound
- Series
- LSQE
- Ratings
- -
- Features
- -
- Q @ Freq
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Semi-Shielded
- Tolerance
- ±10%
- Inductance
- 10 µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 0805 (2012 Metric)
Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm) Base Product NumberLSQEA2012 DC Resistance (DCR)360mOhm Current Rating (Amps)150 mA Height - Seated (Max)0.057" (1.45mm) Operating Temperature-40°C ~ 105°C Supplier Device Package0805 Frequency - Self Resonant32MHz Current - Saturation (Isat)- Inductance Frequency - Test2.52 MHz Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥0.83000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥0.59500 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥0.48870 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥0.40181 |
| Tape & Reel (TR) | 3,000 | ¥0.36597 |
| Tape & Reel (TR) | 6,000 | ¥0.34507 |
| Tape & Reel (TR) | 9,000 | ¥0.33340 |
| Tape & Reel (TR) | 15,000 | ¥0.31927 |
| Tape & Reel (TR) | 21,000 | ¥0.31029 |
| Tape & Reel (TR) | 30,000 | ¥0.30106 |
| Tape & Reel (TR) | 75,000 | ¥0.27861 |
| Tape & Reel (TR) | 150,000 | ¥0.26278 |
| Tape & Reel (TR) | 300,000 | ¥0.25842 |
