Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

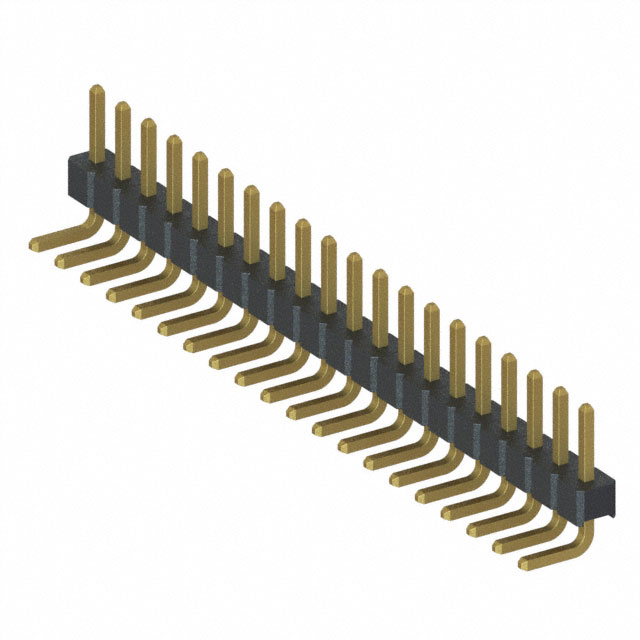

Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
Specifications
- Mfr
- Harwin Inc.
- Style
- Board to Board
- Series
- M22
- Features
- -
- Packaging
- Bulk
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header, Cuttable
Pitch - Mating0.079" (2.00mm) Contact MaterialPhosphor Bronze Insulation Height0.079" (2.00mm) Base Product NumberM22-253 Insulation MaterialPolyamide (PA6T), Nylon 6T Contact Length - Post0.094" (2.40mm) Current Rating (Amps)1A per Contact Operating Temperature-40°C ~ 105°C Contact Finish - MatingGold Contact Length - Mating0.138" (3.50mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥14.47000 |
| Bulk | 10 | ¥12.29700 |
| Bulk | 100 | ¥10.45000 |
| Bulk | 500 | ¥9.32740 |
| Bulk | 1,000 | ¥8.88222 |
| Bulk | 5,000 | ¥7.92927 |
| Bulk | 10,000 | ¥7.55120 |
