Description

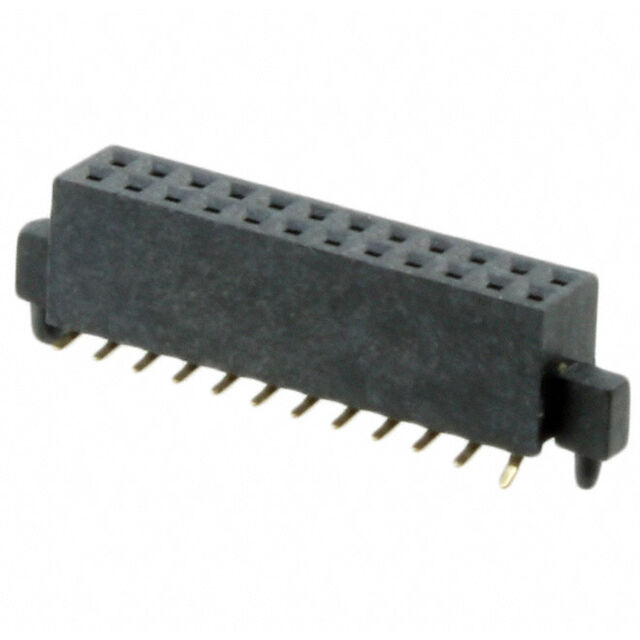

24 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Specifications
- Mfr
- Harwin Inc.
- Style
- Board to Board
- Series
- Archer M50
- Features
- Board Guide
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose, Medical, Telecommunications
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
Pitch - Mating0.050" (1.27mm) Contact MaterialPhosphor Bronze Insulation Height0.181" (4.60mm) Base Product NumberM50-430 Insulation MaterialLiquid Crystal Polymer (LCP) Row Spacing - Mating0.050" (1.27mm) Contact Finish - PostGold Operating Temperature-40°C ~ 105°C Mated Stacking Heights6mm, 6.5mm Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥34.49000 |
| Tube | 32 | ¥26.96281 |
| Tube | 128 | ¥24.44883 |
| Tube | 512 | ¥22.17035 |
| Tube | 1,024 | ¥21.11295 |
