M55-7025042R

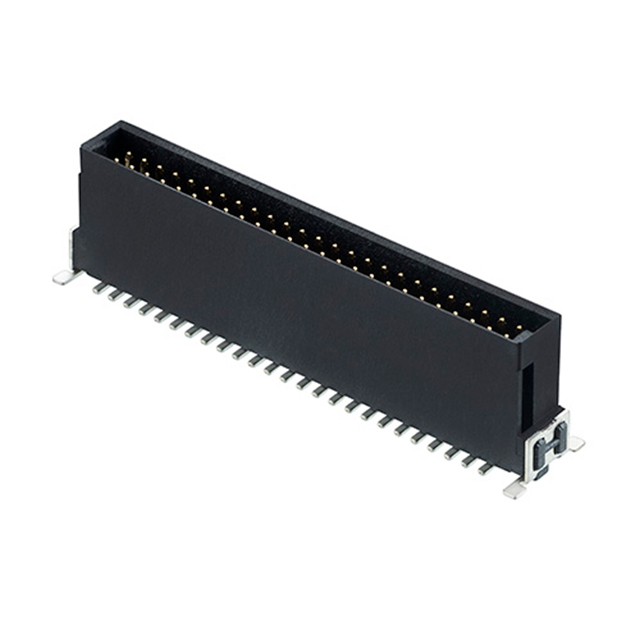

CONN HEADER SMD 50POS 1.27MM
Manufacturer: Harwin Inc.IC code: 952-3888-2-ND - Tape & Reel (TR) || 952-3888-1-ND - Cut Tape (CT) || 952-3888-6-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 50 position 0.050" (1.27mm)
Specifications
- Mfr
- Harwin Inc.
- Style
- Board to Board
- Series
- Kontrol
- Features
- Board Guide, Pick and Place, Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive, General Purpose, Industrial
- Contact Type
- Male Pin
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount
- Connector Type
Pitch - Mating0.050" (1.27mm) Contact MaterialPhosphor Bronze Insulation Height0.388" (9.86mm) Base Product NumberM55-702 Insulation MaterialLiquid Crystal Polymer (LCP) Row Spacing - Mating0.050" (1.27mm) Current Rating (Amps)1.2A Operating Temperature-55°C ~ 125°C Mated Stacking Heights11.1mm, 13.9mm, 18.5mm Contact Finish - MatingGold Contact Length - Mating0.157" (4.00mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post100.0µin (2.54µm) Contact Finish Thickness - Mating1.00µin (0.025µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥19.68000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥16.74700 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥14.22930 |
| Tape & Reel (TR) | 300 | ¥13.16777 |
| Tape & Reel (TR) | 600 | ¥12.53923 |
| Tape & Reel (TR) | 900 | ¥12.18564 |
| Tape & Reel (TR) | 1,500 | ¥11.75447 |
| Tape & Reel (TR) | 2,100 | ¥11.47887 |
| Tape & Reel (TR) | 3,000 | ¥11.19382 |
| Tape & Reel (TR) | 7,500 | ¥10.49386 |
