Description

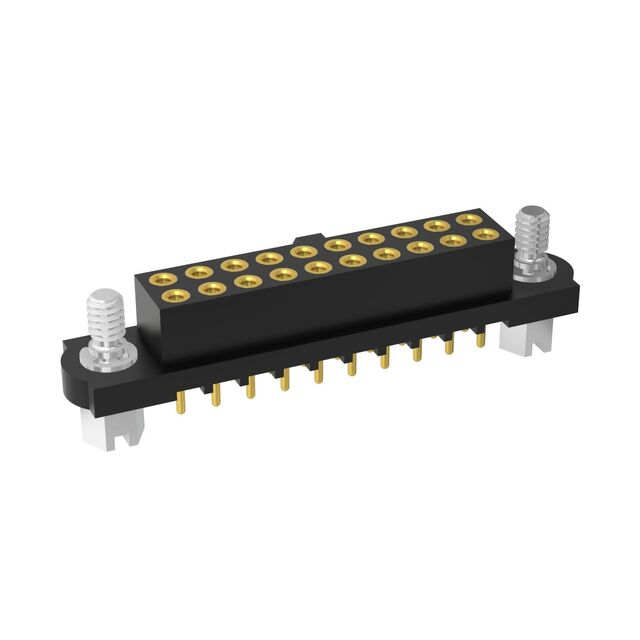

20 Position Header Connector 0.079" (2.00mm) Through Hole Gold
Specifications
- Mfr
- Harwin Inc.
- Style
- Board to Board or Cable
- Series
- Datamate
- Features
- Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Circular
- Mounting Type
- Through Hole
- Connector Type
- Header
- Fastening Type
- Threaded
Pitch - Mating0.079" (2.00mm) Contact MaterialBeryllium Copper Insulation Height0.204" (5.17mm) Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating0.079" (2.00mm) Contact Finish - PostGold Contact Length - Post0.079" (2.00mm) Current Rating (Amps)3.3A per Contact Operating Temperature-55°C ~ 125°C Mated Stacking Heights7.3mm, 7.55mm Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥190.53000 |
| Tube | 16 | ¥156.61063 |
| Tube | 32 | ¥149.13438 |
| Tube | 56 | ¥143.36196 |
| Tube | 104 | ¥137.23885 |
| Tube | 256 | ¥128.79719 |
| Tube | 504 | ¥122.79359 |
