Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

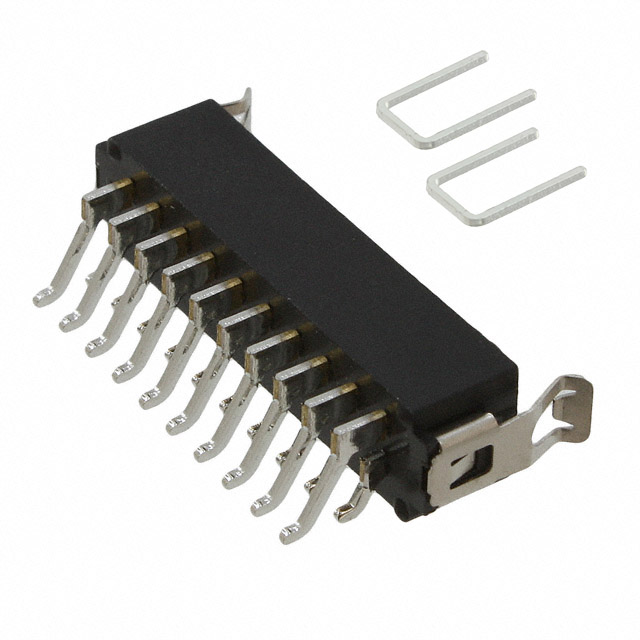

Connector Header Surface Mount, Right Angle 20 position 0.079" (2.00mm)
Specifications
- Mfr
- Harwin Inc.
- Style
- Board to Board or Cable
- Series
- Datamate L-Tek
- Features
- Strain Relief Clips
- Packaging
- Tube
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Circular
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Pitch - Mating0.079" (2.00mm) Insulation Height0.235" (5.97mm) Base Product NumberM80-666 Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating0.079" (2.00mm) Current Rating (Amps)2.2A Operating Temperature-55°C ~ 125°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post118.1µin (3.00µm) Contact Finish Thickness - Mating29.5µin (0.75µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥86.83000 |
| Tube | 10 | ¥73.81000 |
| Tube | 100 | ¥62.73450 |
| Tube | 500 | ¥56.00438 |
| Tube | 1,000 | ¥53.33449 |
