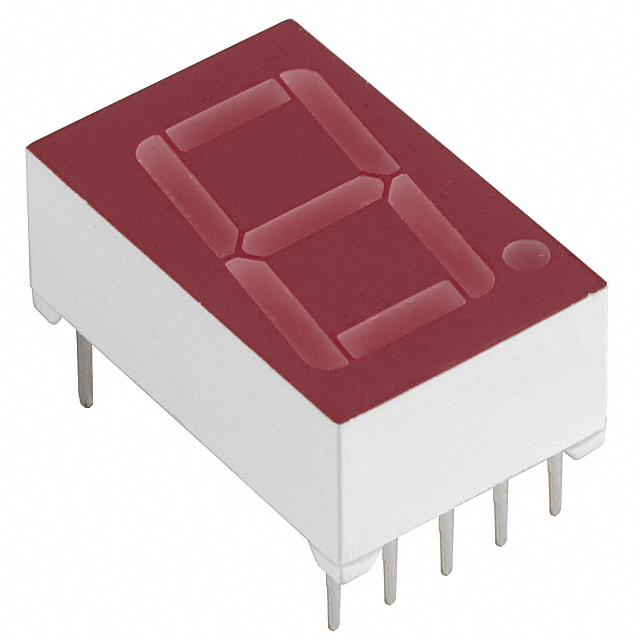

MAN6960
LED 7-SEG SGL CA RED RHDP .56"
Manufacturer: Everlight Electronics Co LtdIC code: MAN6960EL-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2.5V (Max) 20mA 0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Specifications
- Color
- Red
- Series
- -
- Packaging
- Bulk
- Common Pin
- Common Anode
- Part Status
- Active
- Display Type
- 7-Segment
- Manufacturer
- Everlight Electronics Co Ltd
- Current - Test
- 20mA
- Package / Case
- 10-DIP (0.600", 15.24mm)
- Digit/Alpha Size
- 0.56" (14.22mm)
- Size / Dimension
- 0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm)
- Wavelength - Peak
- 635nm
- Base Product Number
- MAN69
- Millicandela Rating
- 2.2mcd
- Number of Characters
- 1
- Power Dissipation (Max)
- 600mW
- Voltage - Forward (Vf) (Typ)
- 2.5V (Max)
