MCH6544-TL-E

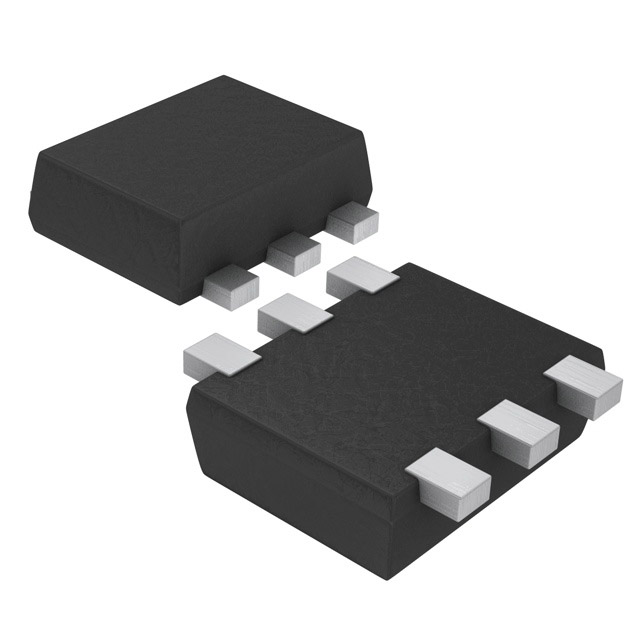

TRANS 2NPN 50V 500MA 6-MCPH
Manufacturer: onsemiIC code: MCH6544-TL-EOSTR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Bipolar (BJT) Transistor Array 2 NPN (Dual) 50V 500mA 500MHz 550mW Surface Mount 6-MCPH
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR)
- Part Status
- Obsolete
- Power - Max
- 550mW
- Manufacturer
- onsemi
- Mounting Type
- Surface Mount
- Package / Case
- 6-SMD, Flat Leads
- Transistor Type
- 2 NPN (Dual)
- Base Product Number
- MCH6544
- Operating Temperature
- 150°C (TJ)
- Frequency - Transition
- 500MHz
- Supplier Device Package
- 6-MCPH
- Vce Saturation (Max) @ Ib, Ic
- 100mV @ 10mA, 100mA
- Current - Collector (Ic) (Max)
- 500mA
- Current - Collector Cutoff (Max)
- 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce
- 300 @ 10mA, 2V
- Voltage - Collector Emitter Breakdown (Max)
