MCMNP517-TP

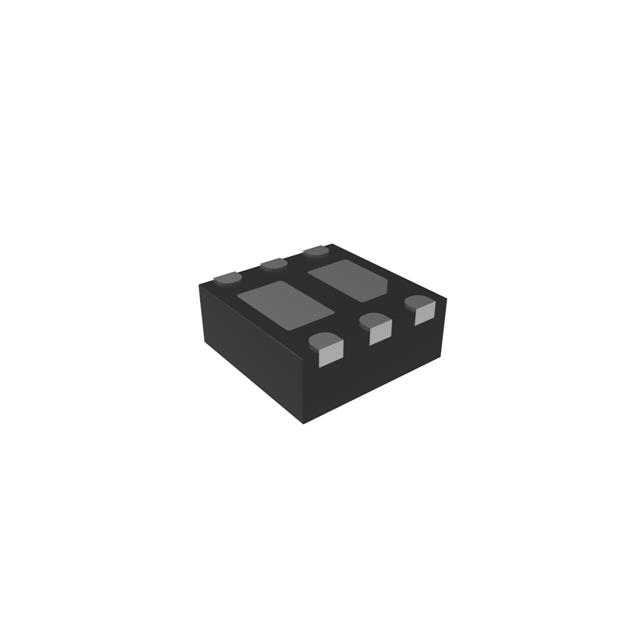

MOSFET N/P-CH 12V 6A/4.1A 6DFN
Manufacturer: MCC (Micro Commercial Components)IC code: MCMNP517-TPMSTR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Mosfet Array 12V 6A, 4.1A Surface Mount DFN2020-6U
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR)
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- Logic Level Gate, 1.8V Drive
- Part Status
- Obsolete
- Power - Max
- -
- Manufacturer
- MCC (Micro Commercial Components)
- Configuration
- N and P-Channel
- Mounting Type
- Surface Mount
- Package / Case
- 6-VDFN Exposed Pad
- Vgs(th) (Max) @ Id
- 1V @ 250µA
- Base Product Number
- MCMNP517
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 24mOhm @ 6A, 10V
- Supplier Device Package
- DFN2020-6U
- Gate Charge (Qg) (Max) @ Vgs
- 12nC @ 10V
- Drain to Source Voltage (Vdss)
- 12V
