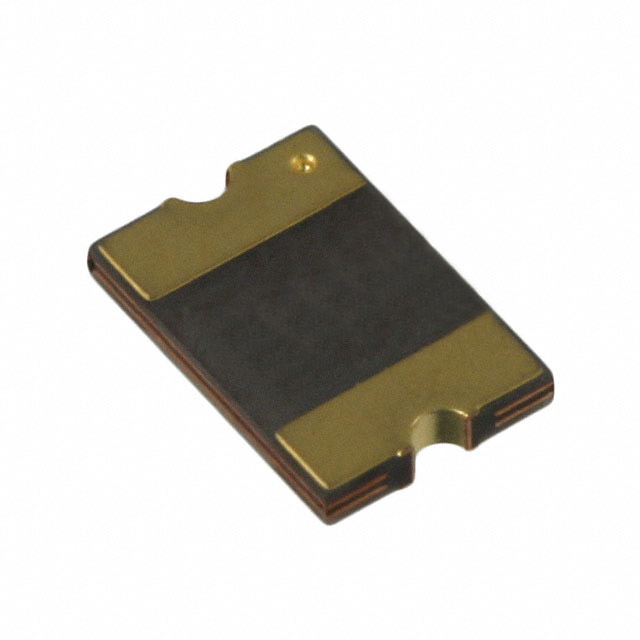

MF-MSMF010-2
PTC RESET FUSE 60V 100MA 1812
Manufacturer: Bourns Inc.IC code: MF-MSMF010-2TR-ND - Tape & Reel (TR) || MF-MSMF010-2CT-ND - Cut Tape (CT) || MF-MSMF010-2DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Polymeric PTC Resettable Fuse 60V 100 mA Ih Surface Mount 1812 (4532 Metric), Concave
Specifications
- Type
- Polymeric
- Grade
- Automotive
- Series
- Multifuse®, MF-MSMF
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Lead Spacing
- -
- Manufacturer
- Bourns Inc.
- Time to Trip
- 1.5 s
- Current - Max
- 40 A
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q200
- Voltage - Max
- 60V
Package / Case1812 (4532 Metric), Concave Approval AgencycURus, TUV Thickness (Max)0.043" (1.10mm) Size / Dimension0.179" L x 0.128" W (4.55mm x 3.24mm) Base Product NumberMF-MSMF Current - Trip (It)300 mA Operating Temperature-40°C ~ 85°C Current - Hold (Ih) (Max)100 mA Resistance - Initial (Ri) (Min)700 mOhms Resistance - Post Trip (R1) (Max)15 Ohms Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥2.98000 |
| Cut Tape (CT) & Digi-Reel® | 5 | ¥2.46400 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.28300 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥1.89220 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.74580 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥1.56932 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.44790 |
| Tape & Reel (TR) | 1,500 | ¥1.27341 |
| Tape & Reel (TR) | 3,000 | ¥1.17379 |
| Tape & Reel (TR) | 4,500 | ¥1.11889 |
| Tape & Reel (TR) | 7,500 | ¥1.05311 |
| Tape & Reel (TR) | 10,500 | ¥1.01172 |
| Tape & Reel (TR) | 15,000 | ¥0.96944 |
| Tape & Reel (TR) | 37,500 | ¥0.93037 |
