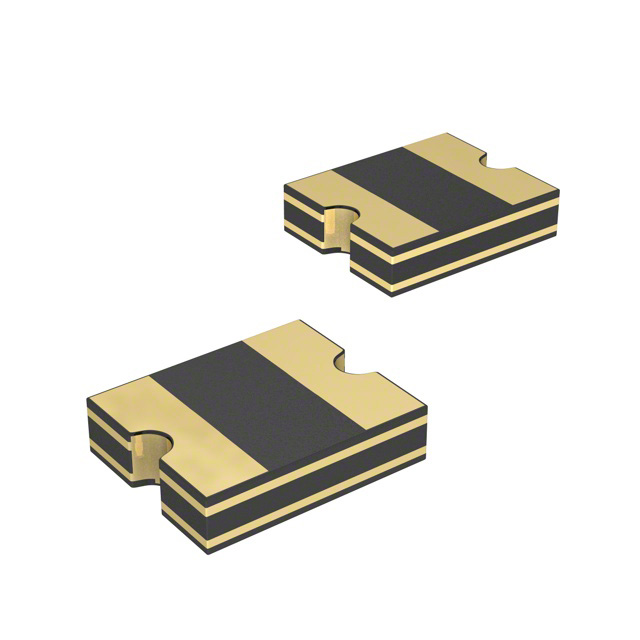

MF-USMF005-2
PTC RESET FUSE 30V 50MA 1210
Manufacturer: Bourns Inc.IC code: MF-USMF005-2TR-ND - Tape & Reel (TR) || MF-USMF005-2CT-ND - Cut Tape (CT) || MF-USMF005-2DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Polymeric PTC Resettable Fuse 30V 50 mA Ih Surface Mount 1210 (3225 Metric), Concave
Specifications
- Type
- Polymeric
- Grade
- Automotive
- Series
- Multifuse®, MF-USMF
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Lead Spacing
- -
- Manufacturer
- Bourns Inc.
- Time to Trip
- 1.5 s
- Current - Max
- 10 A
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q200
- Voltage - Max
- 30V
Package / Case1210 (3225 Metric), Concave Approval AgencycURus, TUV Thickness (Max)0.033" (0.85mm) Size / Dimension0.127" L x 0.102" W (3.22mm x 2.58mm) Base Product NumberMF-USMF Current - Trip (It)150 mA Operating Temperature-40°C ~ 85°C Current - Hold (Ih) (Max)50 mA Resistance - Initial (Ri) (Min)2.8 Ohms Resistance - Post Trip (R1) (Max)50 Ohms Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.31000 |
| Cut Tape (CT) & Digi-Reel® | 5 | ¥2.73000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.50600 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥2.08240 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.92110 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥1.72744 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.59346 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.46958 |
| Tape & Reel (TR) | 3,000 | ¥1.29166 |
| Tape & Reel (TR) | 6,000 | ¥1.18991 |
| Tape & Reel (TR) | 9,000 | ¥1.13385 |
| Tape & Reel (TR) | 15,000 | ¥1.06661 |
| Tape & Reel (TR) | 21,000 | ¥1.03375 |
