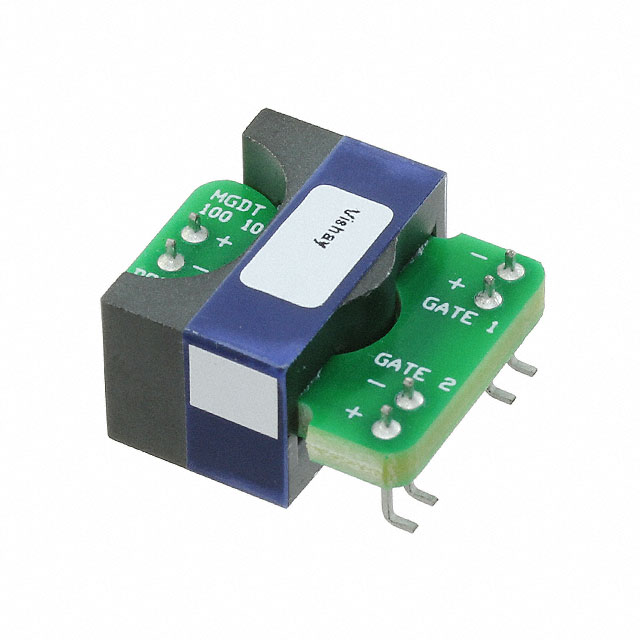

MGDT100100-SM
PLANAR GATE-DRIVE XFMR, 1 : 1 :
Manufacturer: Vishay DaleIC code: 541-4222-2-ND - Tape & Reel (TR) || 541-4222-1-ND - Cut Tape (CT) || 541-4222-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
240µH Gate Drive Pulse Transformer 1:1:1 Surface Mount
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 240µH
- Part Status
- Active
- Manufacturer
- Vishay Dale
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Size / Dimension
- 0.810" L x 0.725" W (20.57mm x 18.42mm)
- Transformer Type
- Gate Drive
- Height - Seated (Max)
- 0.450" (11.43mm)
- Operating Temperature
- -55°C ~ 125°C
- Turns Ratio - Primary:Secondary
- 1:1:1
