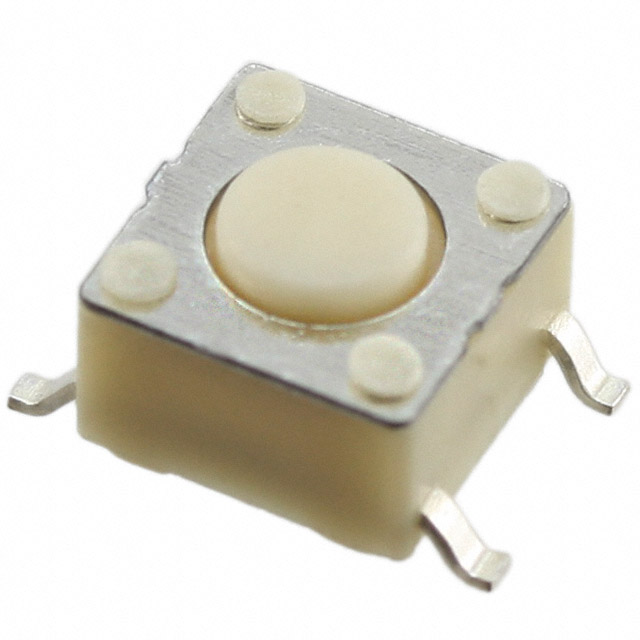

MJTP1138TR
SWITCH TACTILE SPST-NO 0.05A 12V
Manufacturer: APEM Inc.IC code: 679-2411-2-ND - Tape & Reel (TR) || 679-2411-1-ND - Cut Tape (CT) || 679-2411-6-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- APEM Inc.
- Series
- MJTP
- Circuit
- SPST-NO
- Outline
- 6.00mm x 6.00mm
- Features
- Tactile Feedback
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- 100,000 Cycles
- Operating Force
- 160gf
Actuator MaterialPolyamide (PA46), Nylon 4/6 Termination StyleGull Wing Base Product NumberMJTP11 Actuator OrientationTop Actuated Operating Temperature-20°C ~ 70°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical4.30mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥6.45000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥5.50000 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥5.12400 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥4.57080 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥4.23356 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥3.99838 |
| Tape & Reel (TR) | 1,200 | ¥3.72818 |
| Tape & Reel (TR) | 2,400 | ¥3.53656 |
| Tape & Reel (TR) | 3,600 | ¥3.43370 |
| Tape & Reel (TR) | 6,000 | ¥3.31362 |
| Tape & Reel (TR) | 8,400 | ¥3.24015 |
| Tape & Reel (TR) | 12,000 | ¥3.16701 |
