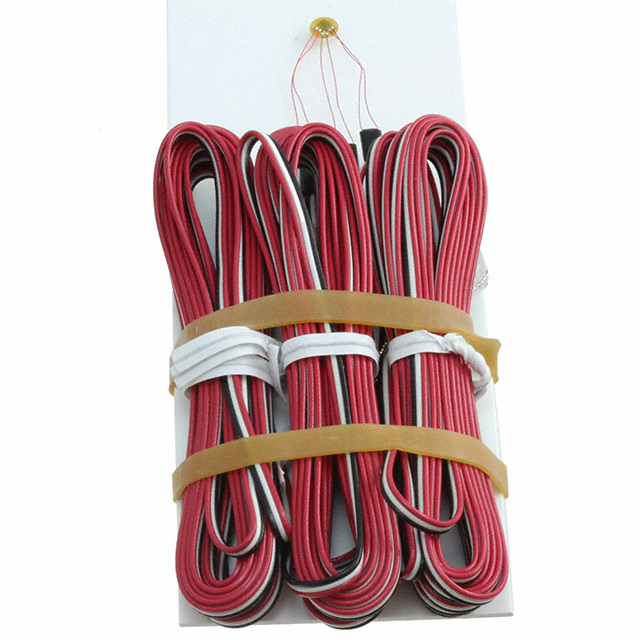

MMF323482
C2A-06-G1350-120/SP70 STACKED RO
Manufacturer: Micro-Measurements (Division of Vishay Precision Group)IC code: 1033-1043-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Stacked Rosette Strain Gauge ±3% 0.039" (1.00mm) per section 0.045" (1.14mm) per section
Specifications
- Series
- C2A
- Packaging
- Bulk
- Resistance
- 120 Ohms
- Part Status
- Obsolete
- Manufacturer
- Micro-Measurements (Division of Vishay Precision Group)
- Pattern Type
- Stacked Rosette
- Strain Range
- ±3%
- Width - Active
- 0.045" (1.14mm) per section
- Length - Active
- 0.039" (1.00mm) per section
- Width - Overall
- 0.20" (5.1mm)
- Length - Overall
- 0.20" (5.1mm)
- Resistance Tolerance
- ±0.6%
- Operating Temperature
- -60 ~ 150°F (-50 ~ 65°C)
- Width - Overall Pattern
- 0.147" (3.73mm)
- Length - Overall Pattern
- 0.144" (3.66mm)
