MOT-I-81610-157

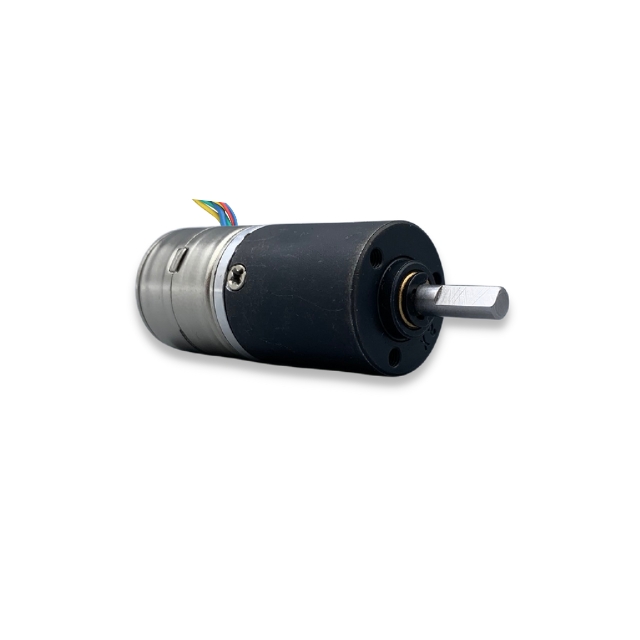

PM Stepper Motor w/ Gearbox
Manufacturer: ISL Products InternationalIC code: 2685-MOT-I-81610-157-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Bipolar Stepper Motor Permanent Magnet Frame Size 3130.5 Step 12VDC
Specifications
- Mfr
- ISL Products International
- Type
- Permanent Magnet
- Series
- -
- Coil Type
- Bipolar
- Packaging
- Bag
- Step Angle
- 0.115°
- Part Status
- Active
- Voltage - Rated
- 12VDC
- Diameter - Shaft
- 0.157" (4.00mm)
- Size / Dimension
- Round - 0.787" Dia (20.00mm)
- Termination Style
- Connector
- Steps per Revolution
- 3130.5
- Mounting Hole Spacing
- 0.591" (15.00mm)
- Operating Temperature
- -10°C ~ 55°C
- Length - Shaft and Bearing
- 0.551" (14.00mm)
- Torque - Holding (oz-in / mNm)
- 55.54 / 392.26
