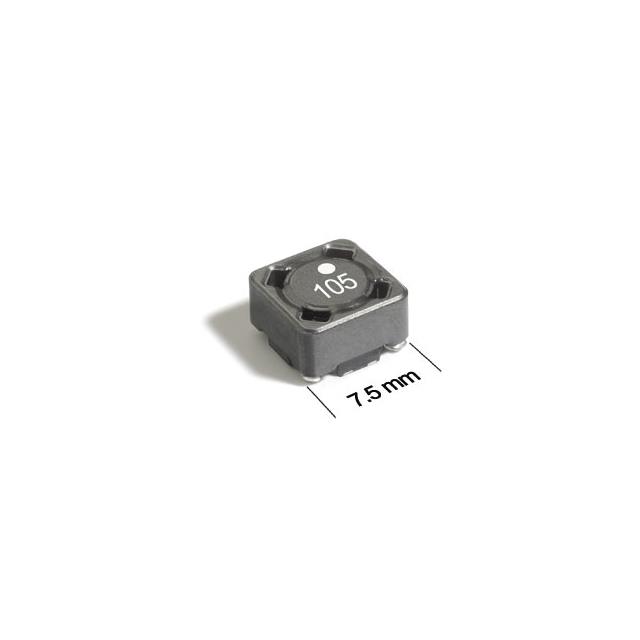

MSD7342-824MLC
CMC 820UH 210MA 2LN SMD AEC-Q200
Manufacturer: CoilcraftIC code: 2457-MSD7342-824MLC-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
820 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 210mA DCR 6.8Ohm
Specifications
- Series
- MSD7342
- Ratings
- AEC-Q200
- Features
- -
- Packaging
- Strip
- Filter Type
- -
- Part Status
- Active
- Height (Max)
- 0.181" (4.60mm)
- Manufacturer
- Coilcraft
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Lines
- 2
- Size / Dimension
- 0.295" L x 0.295" W (7.50mm x 7.50mm)
- Current Rating (Max)
- 210mA
- Operating Temperature
- -40°C ~ 85°C
- Inductance @ Frequency
- 820 µH @ 100 kHz
- DC Resistance (DCR) (Max)
- 6.8Ohm
