Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

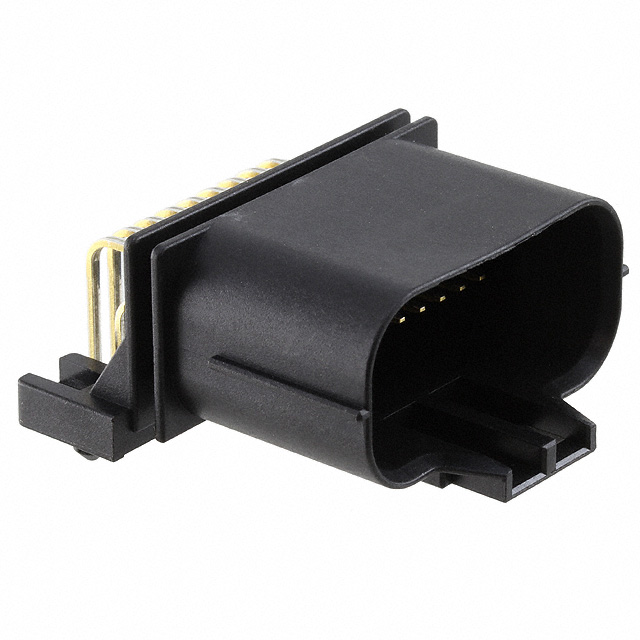

Connector Header Through Hole, Right Angle 18 position 0.098" (2.50mm)
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- MX23A
- Features
- Board Guide
- Packaging
- Tray
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
Pitch - Mating0.098" (2.50mm) Insulation Height0.720" (18.30mm) Ingress ProtectionWaterproof Base Product NumberMX23A18N Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled Row Spacing - Mating0.173" (4.40mm) Contact Length - Post0.122" (3.10mm) Operating Temperature-40°C ~ 125°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥98.00000 |
| Tray | 10 | ¥83.29500 |
| Tray | 160 | ¥68.49100 |
| Tray | 640 | ¥62.11447 |
| Tray | 1,120 | ¥59.71280 |
