Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

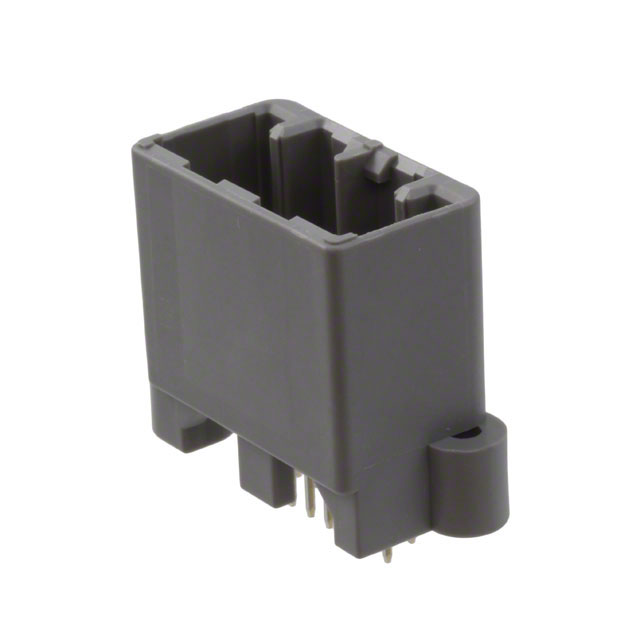

Connector Header Through Hole 16 position 0.087" (2.20mm)
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- MX34
- Features
- Mounting Flange
- Packaging
- Tube
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Header
Pitch - Mating0.087" (2.20mm) Insulation Height0.925" (23.50mm) Base Product NumberMX34016U Insulation MaterialSyndiotactic Polystyrene (SPS), Glass Filled Row Spacing - Mating0.118" (3.00mm) Contact Length - Post0.126" (3.20mm) Operating Temperature-40°C ~ 85°C Mated Stacking Heights29.95mm Contact Finish - MatingTin Contact Length - Mating0.303" (7.70mm) Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥15.30000 |
| Tube | 19 | ¥12.41368 |
| Tube | 114 | ¥10.93596 |
| Tube | 513 | ¥9.83435 |
| Tube | 1,007 | ¥9.37728 |
| Tube | 5,016 | ¥8.37353 |
| Tube | 10,013 | ¥7.97537 |
