Description

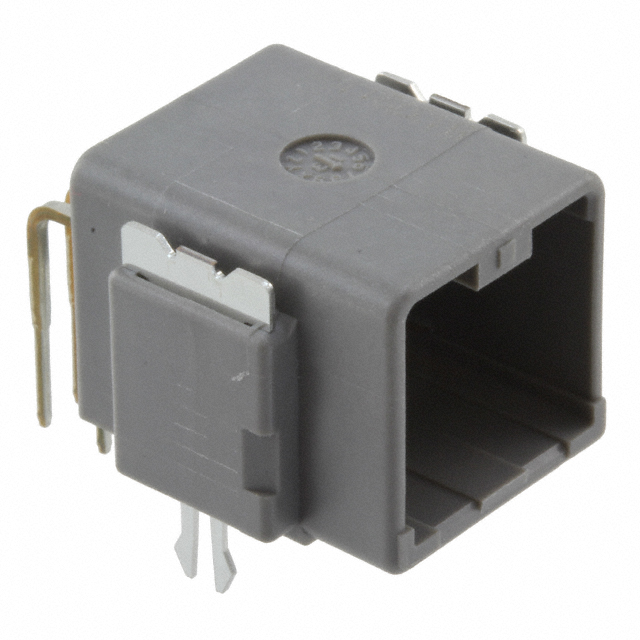

Connector Header Through Hole, Right Angle 8 position 0.094" (2.40mm)
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- MX34
- Features
- Board Lock
- Packaging
- Tube
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
Pitch - Mating0.094" (2.40mm) Insulation Height0.559" (14.20mm) Base Product NumberMX34E08N Insulation MaterialSyndiotactic Polystyrene (SPS), Glass Filled Row Spacing - Mating0.138" (3.50mm) Contact Length - Post0.126" (3.20mm) Operating Temperature-40°C ~ 85°C Contact Finish - MatingTin Contact Length - Mating0.303" (7.70mm) Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥20.67000 |
| Tube | 28 | ¥16.33929 |
| Tube | 112 | ¥14.81509 |
| Tube | 504 | ¥13.32256 |
| Tube | 1,008 | ¥12.68681 |
| Tube | 5,012 | ¥11.33051 |
