Description

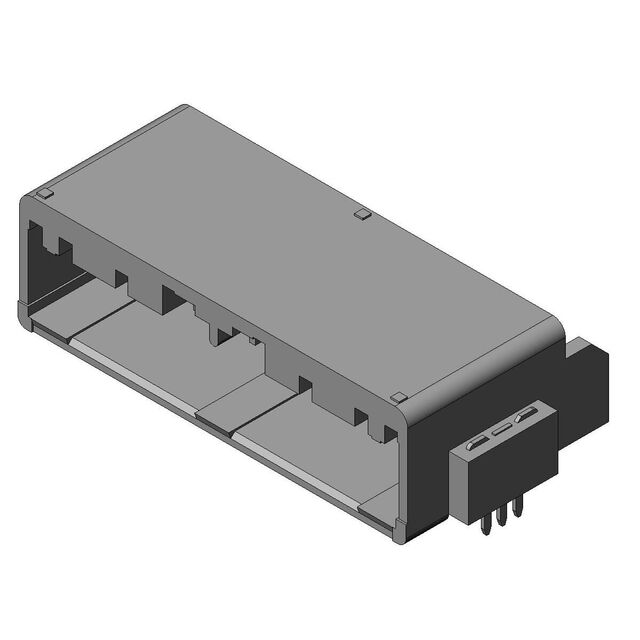

Connector Header Surface Mount, Right Angle 36 position 0.087" (2.20mm)
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- MX34R
- Features
- Solder Retention
- Packaging
- Tray
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Pitch - Mating0.087" (2.20mm) Contact MaterialCopper Alloy Insulation Height0.543" (13.80mm) Base Product NumberMX34R36H Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating0.118" (3.00mm) Operating Temperature-40°C ~ 85°C Contact Finish - MatingTin Contact Length - Mating0.303" (7.70mm) Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥43.25000 |
| Tray | 10 | ¥36.76800 |
| Tray | 480 | ¥27.97790 |
| Tray | 960 | ¥26.64332 |
| Tray | 1,440 | ¥25.89276 |
