Description

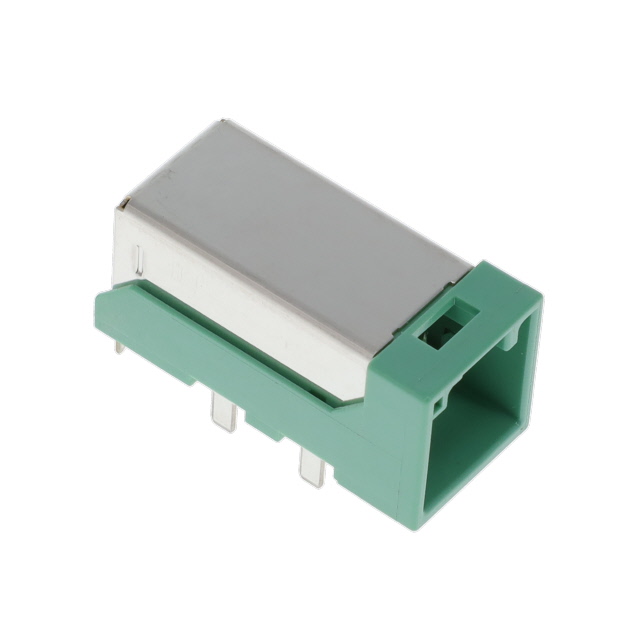

Connector Header Surface Mount, Right Angle; Through Hole 4 position 0.079" (2.00mm)
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- MX49
- Features
- Board Guide, Shielded
- Packaging
- Tray
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- -
- Mounting Type
- Surface Mount, Right Angle; Through Hole
- Connector Type
- Header
Fastening TypeLatch Holder Pitch - Mating0.079" (2.00mm) Insulation Height0.496" (12.60mm) Base Product NumberMX49004H Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled Operating Temperature-40°C ~ 85°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥23.82000 |
| Tray | 10 | ¥20.20400 |
| Tray | 100 | ¥17.17180 |
| Tray | 500 | ¥15.32826 |
| Tray | 1,000 | ¥14.59686 |
| Tray | 5,000 | ¥13.03129 |
