MX79A04HQ3R150

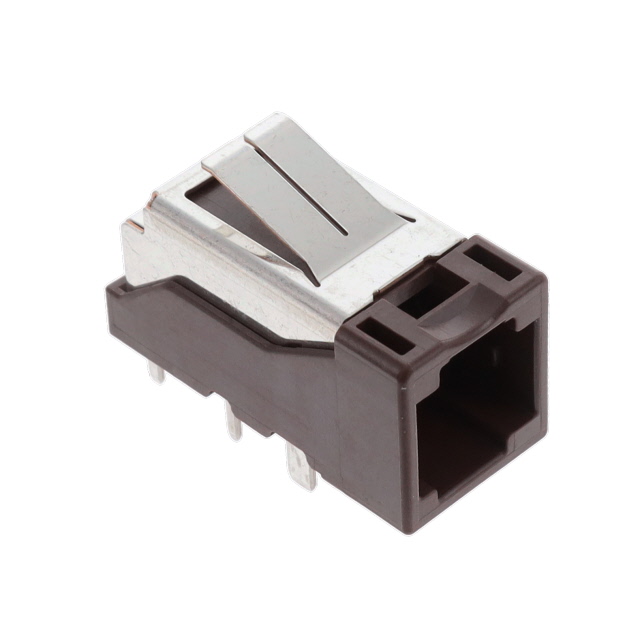

CONN PIN HEADER 4 POS R/A BROWN
Manufacturer: JAE ElectronicsIC code: 670-MX79A04HQ3R150TR-ND - Tape & Reel (TR) || 670-MX79A04HQ3R150CT-ND - Cut Tape (CT) || 670-MX79A04HQ3R150DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle; Through Hole 4 (2 + 1 Power + 1 Ground) position 0.079" (2.00mm)
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- MX79A
- Features
- Shielded
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive
- Contact Type
- Male Pin
- Contact Shape
- Rectangular
- Mounting Type
- Surface Mount, Right Angle; Through Hole
- Connector Type
Fastening TypeLatch Holder Pitch - Mating0.079" (2.00mm) Insulation Height0.433" (11.00mm) Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled Number of Positions4 (2 + 1 Power + 1 Ground) Contact Length - Post0.087" (2.20mm) Operating Temperature-40°C ~ 85°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥20.26000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥17.21000 |
| Tape & Reel (TR) | 150 | ¥14.21173 |
| Tape & Reel (TR) | 300 | ¥13.53273 |
| Tape & Reel (TR) | 450 | ¥13.15113 |
| Tape & Reel (TR) | 750 | ¥12.68561 |
| Tape & Reel (TR) | 1,050 | ¥12.38813 |
| Tape & Reel (TR) | 1,500 | ¥12.08036 |
| Tape & Reel (TR) | 3,750 | ¥11.32479 |
| Tape & Reel (TR) | 7,500 | ¥10.78491 |
