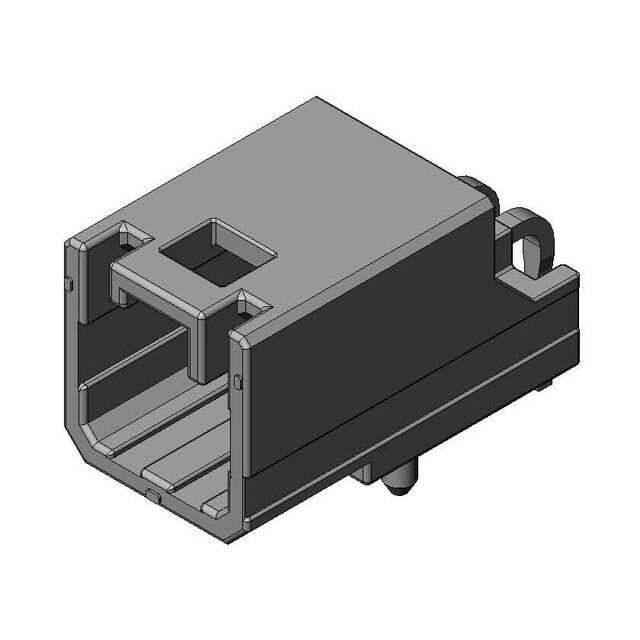

MX81A002NF1R470
CONN PIN HDR 2 POS KEY 1 2.54MM
Manufacturer: JAE ElectronicsIC code: 670-MX81A002NF1R470TR-ND - Tape & Reel (TR) || 670-MX81A002NF1R470CT-ND - Cut Tape (CT) || 670-MX81A002NF1R470DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- MX81
- Features
- Board Guide
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
Pitch - Mating0.100" (2.54mm) Contact MaterialCopper Alloy Insulation Height0.350" (8.89mm) Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled Current Rating (Amps)Varies by Wire Gauge Operating Temperature-40°C ~ 125°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥9.10000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥7.74100 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥7.25440 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥6.90700 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥6.57630 |
| Tape & Reel (TR) | 470 | ¥5.89562 |
| Tape & Reel (TR) | 940 | ¥5.61410 |
| Tape & Reel (TR) | 1,410 | ¥5.45579 |
| Tape & Reel (TR) | 2,350 | ¥5.26263 |
| Tape & Reel (TR) | 3,290 | ¥5.13923 |
| Tape & Reel (TR) | 4,700 | ¥5.01160 |
| Tape & Reel (TR) | 11,750 | ¥4.69811 |
