Description

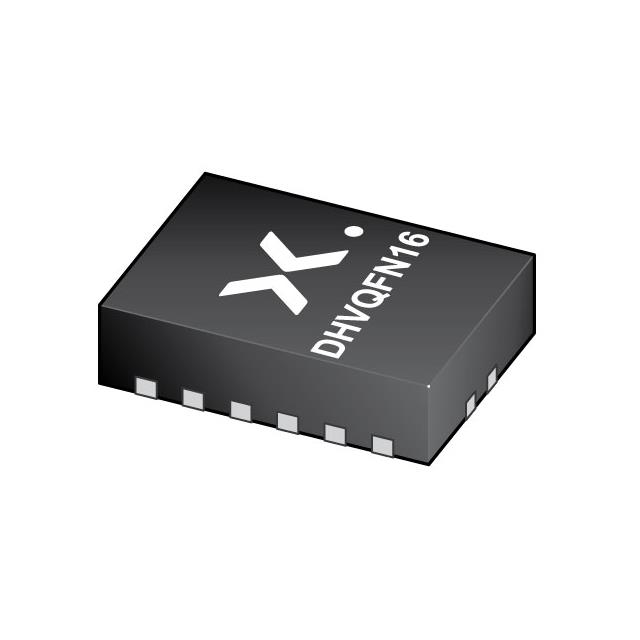

2 Circuit IC Switch 4:1 146Ohm 16-DHVQFN (2.5x3.5)
Specifications
- Grade
- Automotive
- Series
- -
- Crosstalk
- -80dB @ 1MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Nexperia USA Inc.
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q100
- -3db Bandwidth
- 380MHz
- Package / Case
- 16-VFQFN Exposed Pad
- Switch Circuit
- SP4T
- Charge Injection
- 8pC
- Number of Circuits
Operating Temperature-40°C ~ 125°C (TA) Supplier Device Package16-DHVQFN (2.5x3.5) On-State Resistance (Max)146Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)17ns, 69ns Voltage - Supply, Single (V+)1.5V ~ 5.5V Current - Leakage (IS(off)) (Max)1nA (Typ) Multiplexer/Demultiplexer Circuit4:1 Channel-to-Channel Matching (ΔRon)1Ohm Channel Capacitance (CS(off), CD(off))1.5pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.17000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.22500 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥1.97800 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.70770 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥1.57904 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.50154 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.43771 |
| Tape & Reel (TR) | 3,000 | ¥1.31910 |
| Tape & Reel (TR) | 6,000 | ¥1.28144 |
| Tape & Reel (TR) | 9,000 | ¥1.26259 |
| Tape & Reel (TR) | 15,000 | ¥1.24169 |
| Tape & Reel (TR) | 21,000 | ¥1.22947 |
| Tape & Reel (TR) | 30,000 | ¥1.21773 |
