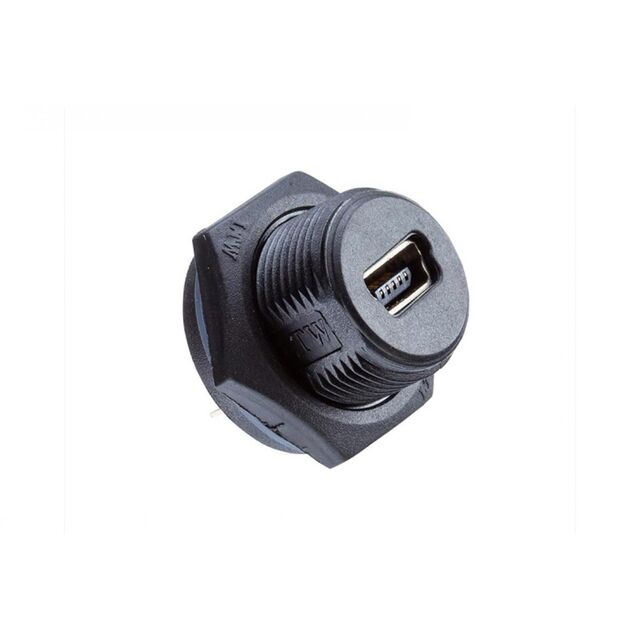

NUB-20PMFP-SC7001
CONN RCP USB2.0 MINI B 5P PCB
Manufacturer: Amphenol LTWIC code: NUB-20PMFP-SC7001-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
USB - mini B USB 2.0 Receptacle Connector 5 Position Panel Mount, Through Hole
Specifications
- Gender
- Receptacle
- Series
- -
- Features
- -
- Packaging
- Bulk
- Shielding
- -
- Part Status
- Active
- Termination
- Solder
- Manufacturer
- Amphenol LTW
- Mounting Type
- Panel Mount, Through Hole
- Connector Type
- USB - mini B
- Contact Finish
- -
- Specifications
- USB 2.0
- Number of Ports
- 1
- Voltage - Rated
- -
- Insulation Color
- -
- Mounting Feature
- Bulkhead - Front Side Nut; Vertical
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Number of Contacts
- 5
- Base Product Number
- NUB-20PMFP
- Current Rating (Amps)
- 1.5A
- Operating Temperature
- -40°C ~ 105°C
- Shell/Shielding Material
- -
- Material Flammability Rating
- -
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Bulk | 1 | ¥74.26000 |
| Bulk | 10 | ¥63.10000 |
| Bulk | 30 | ¥58.38600 |
| Bulk | 50 | ¥56.32020 |
| Bulk | 100 | ¥53.63170 |
| Bulk | 250 | ¥50.27492 |
| Bulk | 500 | ¥47.87712 |
| Bulk | 1,000 | ¥45.59411 |
