NVATS5A304PLZT4G

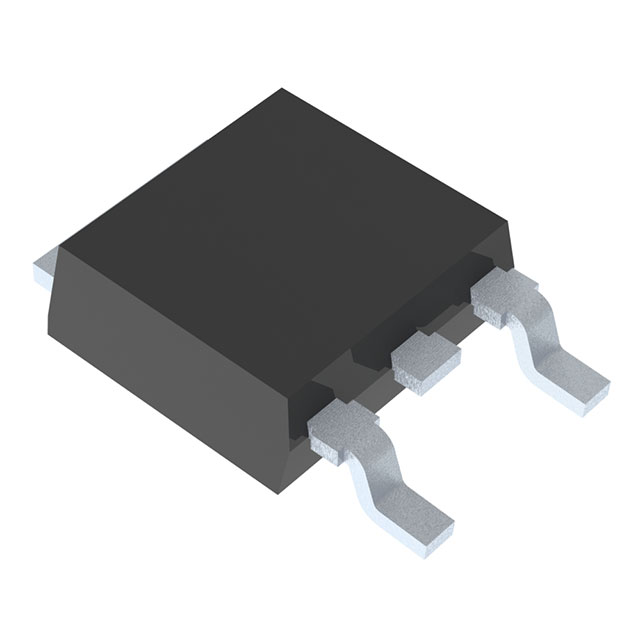

MOSFET P-CHANNEL 60V 120A ATPAK
Manufacturer: onsemiIC code: NVATS5A304PLZT4G-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
P-Channel 60 V 120A (Ta) 108W (Tc) Surface Mount ATPAK
Specifications
- Mfr
- onsemi
- Grade
- Automotive
- Series
- -
- FET Type
- P-Channel
- Packaging
- Tape & Reel (TR)
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q101
- Package / Case
- TO-252-3, DPAK (2 Leads + Tab), SC-63
- Vgs(th) (Max) @ Id
- 2.6V @ 1mA
- Base Product Number
- NVATS5
- Operating Temperature
- -55°C ~ 175°C (TJ)
- Rds On (Max) @ Id, Vgs
- 6.5mOhm @ 50A, 10V
- Power Dissipation (Max)
- 108W (Tc)
- Supplier Device Package
- ATPAK
