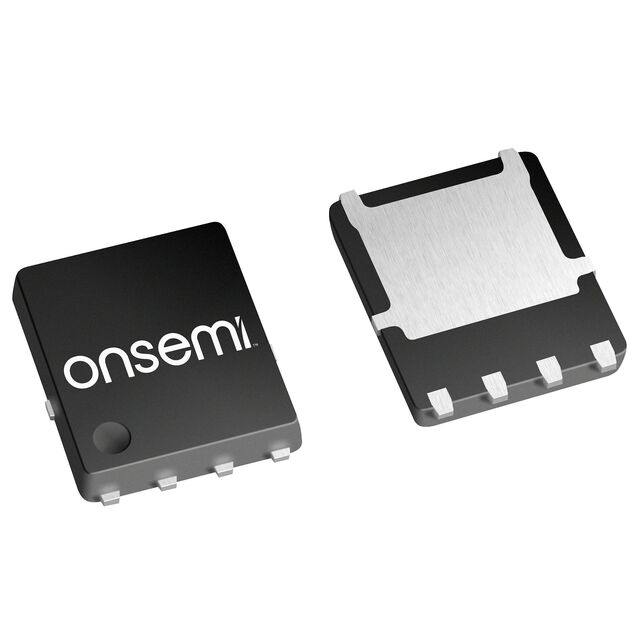

NVMFS5C423NLWFAFT1G
MOSFET N-CH 40V 31A/150A 5DFN
Manufacturer: onsemiIC code: 488-NVMFS5C423NLWFAFT1GTR-ND - Tape & Reel (TR) || 488-NVMFS5C423NLWFAFT1GCT-ND - Cut Tape (CT) || 488-NVMFS5C423NLWFAFT1GDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 40 V 31A (Ta), 150A (Tc) 3.7W (Ta), 83W (Tc) Surface Mount, Wettable Flank 5-DFN (5x6) (8-SOFL)
Specifications
- Mfr
- onsemi
- Grade
- Automotive
- Series
- -
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount, Wettable Flank
- Qualification
- AEC-Q101
- Package / Case
- 8-PowerTDFN, 5 Leads
- Vgs(th) (Max) @ Id
Base Product NumberNVMFS5 Operating Temperature-55°C ~ 175°C (TJ) Rds On (Max) @ Id, Vgs2mOhm @ 50A, 10V Power Dissipation (Max)3.7W (Ta), 83W (Tc) Supplier Device Package5-DFN (5x6) (8-SOFL) Gate Charge (Qg) (Max) @ Vgs50 nC @ 10 V Drain to Source Voltage (Vdss)40 V Input Capacitance (Ciss) (Max) @ Vds3100 pF @ 20 V Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V Current - Continuous Drain (Id) @ 25°C31A (Ta), 150A (Tc) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥19.52000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥14.17500 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥10.12580 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥8.25494 |
| Tape & Reel (TR) | 1,500 | ¥6.87484 |
| Tape & Reel (TR) | 3,000 | ¥6.74418 |
