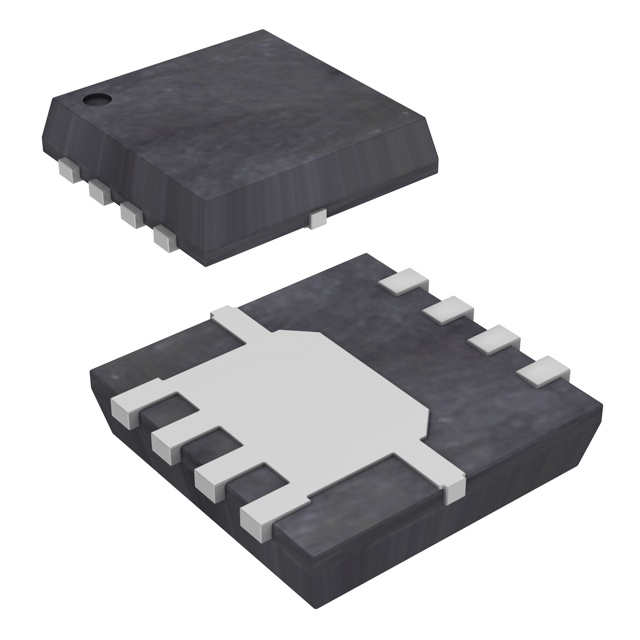

NVTFS6H860NTAG
MOSFET N-CH 80V 8A/30A 8WDFN
Manufacturer: onsemiIC code: 488-NVTFS6H860NTAGTR-ND - Tape & Reel (TR) || 488-NVTFS6H860NTAGCT-ND - Cut Tape (CT) || 488-NVTFS6H860NTAGDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 80 V 8A (Ta), 30A (Tc) 3.1W (Ta), 46W (Tc) Surface Mount 8-WDFN (3.3x3.3)
Specifications
- Mfr
- onsemi
- Grade
- Automotive
- Series
- -
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q101
- Package / Case
- 8-PowerWDFN
- Vgs(th) (Max) @ Id
- 4V @ 30µA
Base Product NumberNVTFS6 Operating Temperature-55°C ~ 175°C (TJ) Rds On (Max) @ Id, Vgs21.1mOhm @ 5A, 10V Power Dissipation (Max)3.1W (Ta), 46W (Tc) Supplier Device Package8-WDFN (3.3x3.3) Gate Charge (Qg) (Max) @ Vgs8.7 nC @ 10 V Drain to Source Voltage (Vdss)80 V Input Capacitance (Ciss) (Max) @ Vds510 pF @ 40 V Drive Voltage (Max Rds On, Min Rds On)10V Current - Continuous Drain (Id) @ 25°C8A (Ta), 30A (Tc) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥8.27000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥5.14400 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.35350 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.58438 |
| Tape & Reel (TR) | 1,500 | ¥2.20996 |
| Tape & Reel (TR) | 3,000 | ¥2.02130 |
| Tape & Reel (TR) | 4,500 | ¥1.92516 |
| Tape & Reel (TR) | 7,500 | ¥1.81714 |
| Tape & Reel (TR) | 10,500 | ¥1.75316 |
| Tape & Reel (TR) | 15,000 | ¥1.69099 |
| Tape & Reel (TR) | 37,500 | ¥1.64986 |
