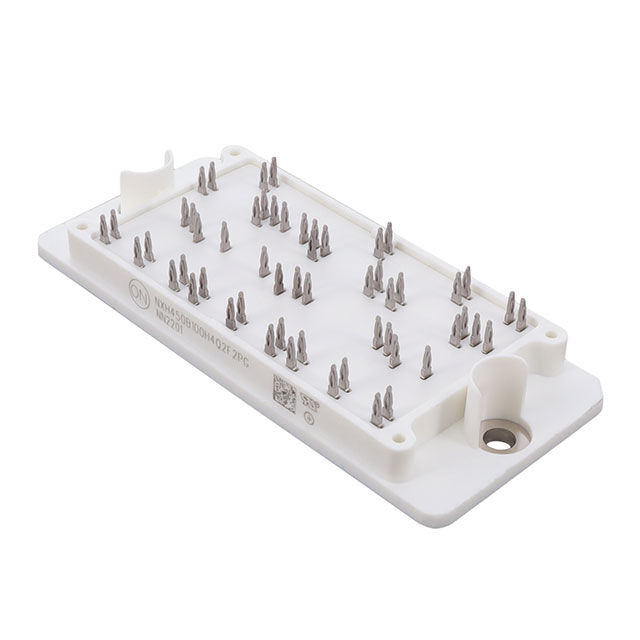

NXH450B100H4Q2F2SG
1000V,75A FSIII IGBT, MID SPEED
Manufacturer: onsemiIC code: 5556-NXH450B100H4Q2F2SG-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
IGBT Module 2 Independent 1000 V 101 A 234 W Chassis Mount 56-PIM (93x47)
Specifications
- Input
- Standard
- Series
- -
- IGBT Type
- -
- Packaging
- Tray
- Part Status
- Active
- Power - Max
- 234 W
- Manufacturer
- onsemi
- Configuration
- 2 Independent
- Mounting Type
- Chassis Mount
- NTC Thermistor
- Yes
- Package / Case
- Module
- Base Product Number
- NXH450
- Operating Temperature
- -40°C ~ 150°C (TJ)
