Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

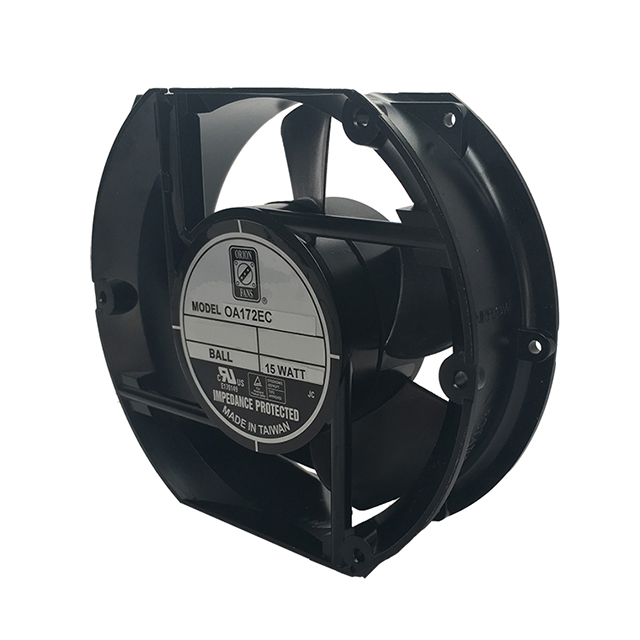

Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 220.0 CFM (6.16m³/min) 2 Wire Leads
Specifications
- RPM
- 3000 RPM
- Noise
- 57.0dB
- Width
- 51.00mm
- Series
- OA172EC
- Weight
- 1.5 lbs (680.4 g)
- Air Flow
- 220.0 CFM (6.16m³/min)
- Fan Type
- Tubeaxial
- Features
- Electronic Commutation (EC), Thermal Overload Protector (TOP)
- Packaging
- Box
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Manufacturer
- Orion Fans
Voltage Range207 ~ 253VAC Approval AgencyATEX, CE, cURus, UR Static Pressure0.620 in H2O (154.4 Pa) Lifetime @ Temp.50000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT) Size / DimensionRectangular/Rounded - 172mm L x 150mm H Ingress ProtectionIP68 - Dust Tight, Waterproof Base Product NumberOA172EC Current Rating (Amps)0.130A Operating Temperature-4 ~ 158°F (-20 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥1,028.80000 |
| Box | 10 | ¥831.82300 |
| Box | 25 | ¥775.84760 |
