Description

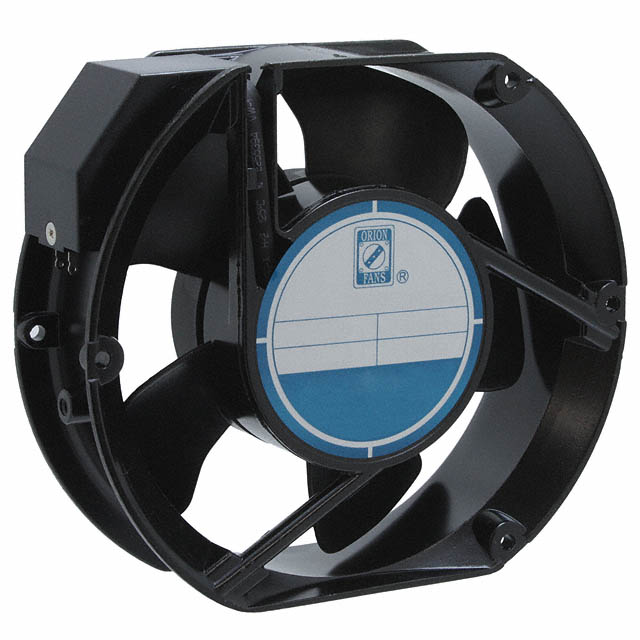

Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 226.0 CFM (6.33m³/min) 2 Terminals
Specifications
- RPM
- 3400 RPM
- Noise
- 58.0dB
- Width
- 51.00mm
- Series
- OA172SAP
- Weight
- 2.6 lbs (1.2 kg)
- Air Flow
- 226.0 CFM (6.33m³/min)
- Fan Type
- Tubeaxial
- Features
- Capacitor, Thermal Overload Protector (TOP)
- Packaging
- Bulk
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Manufacturer
- Orion Fans
Voltage Range103 ~ 126VAC Approval AgencycURus, TUV Static Pressure0.790 in H2O (196.8 Pa) Lifetime @ Temp.40000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT) Size / DimensionRectangular/Rounded - 172mm L x 150mm H Ingress ProtectionIP55 - Dust Protected, Water Resistant Base Product NumberOA172SAP Current Rating (Amps)0.250A Operating Temperature-4 ~ 158°F (-20 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥468.16000 |
| Bulk | 20 | ¥356.09400 |
| Bulk | 40 | ¥338.19000 |
