Description

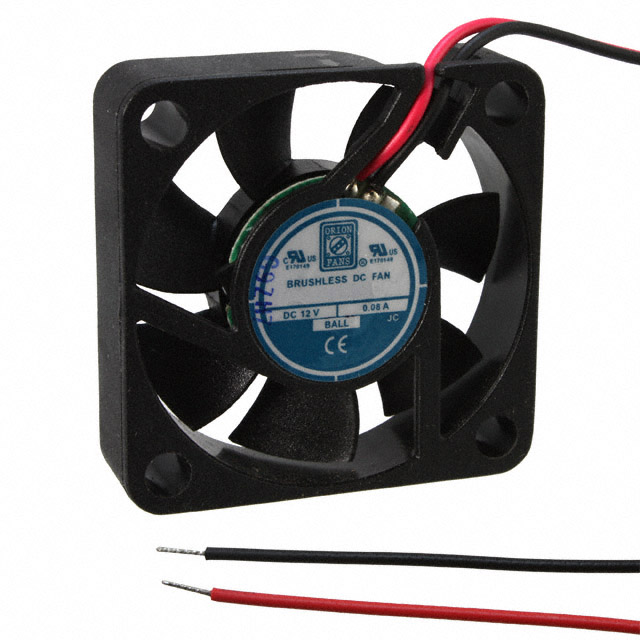

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 7.2 CFM (0.202m³/min) 2 Wire Leads
Specifications
- Mfr
- Orion Fans
- RPM
- 6000 RPM
- Noise
- 26.3dB
- Width
- 10.50mm
- Series
- OD4010
- Weight
- 0.441 lb (200.00 g)
- Air Flow
- 7.2 CFM (0.202m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Packaging
- Box
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
Voltage Range10.8 ~ 13.2VDC Approval AgencyCE, cURus, TUV, UR Static Pressure0.120 in H2O (29.9 Pa) Lifetime @ Temp.60000 Hrs @ 45°C Material - BladePolybutylene Terephthalate (PBT) Material - FramePolybutylene Terephthalate (PBT) Size / DimensionSquare - 40mm L x 40mm H Base Product NumberOD4010 Current Rating (Amps)0.050A Operating Temperature-4 ~ 149°F (-20 ~ 65°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥110.17000 |
| Box | 10 | ¥90.77600 |
| Box | 25 | ¥83.33720 |
| Box | 50 | ¥77.94540 |
| Box | 100 | ¥73.93760 |
