Description

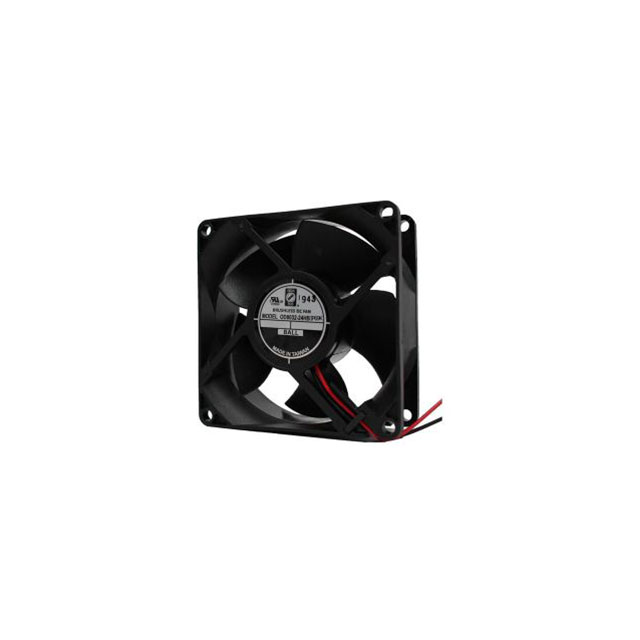

Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 77.0 CFM (2.16m³/min) 2 Wire Leads
Specifications
- Mfr
- Orion Fans
- RPM
- 6000 RPM
- Noise
- 50.0dB(A)
- Width
- 32.00mm
- Series
- OD8032-IP69K
- Air Flow
- 77.0 CFM (2.16m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Packaging
- Box
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 7.8 W
- Voltage Range
Approval AgencyCE, cURus, TUV, UR Static Pressure0.730 in H2O (181.8 Pa) Lifetime @ Temp.70000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT) Material - FramePolybutylene Terephthalate (PBT) Size / DimensionSquare - 80mm L x 80mm H Ingress ProtectionIP69K - Dust Tight, Water Resistant, Waterproof Base Product NumberOD8032 Current Rating (Amps)0.160A Operating Temperature-4 ~ 149°F (-20 ~ 65°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥284.52000 |
| Box | 10 | ¥232.39200 |
| Box | 25 | ¥212.86240 |
| Box | 50 | ¥200.26140 |
