P0597NLT

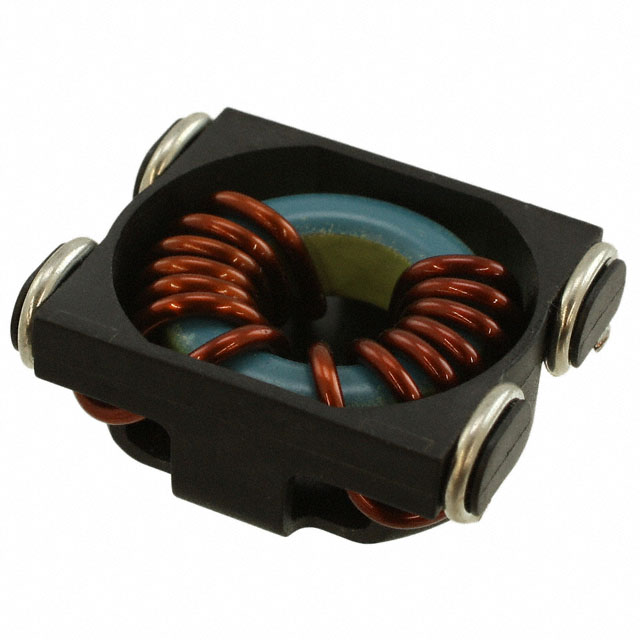

INDUCT ARRAY 2 COIL 5.7UH SMD
Manufacturer: Pulse ElectronicsIC code: 553-2074-2-ND - Tape & Reel (TR) || 553-2074-1-ND - Cut Tape (CT) || 553-2074-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Unshielded 2 Coil Inductor Array 9.8 µH Inductance - Connected in Series 2.45 µH Inductance - Connected in Parallel 2.5mOhm Max DC Resistance (DCR) - Parallel 27 A Nonstandard
Specifications
- Height
- 0.500" (12.70mm)
- Series
- HCCI-80
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Tolerance
- ±15%
- Part Status
- Active
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 1.220" L x 1.000" W (30.99mm x 25.40mm)
