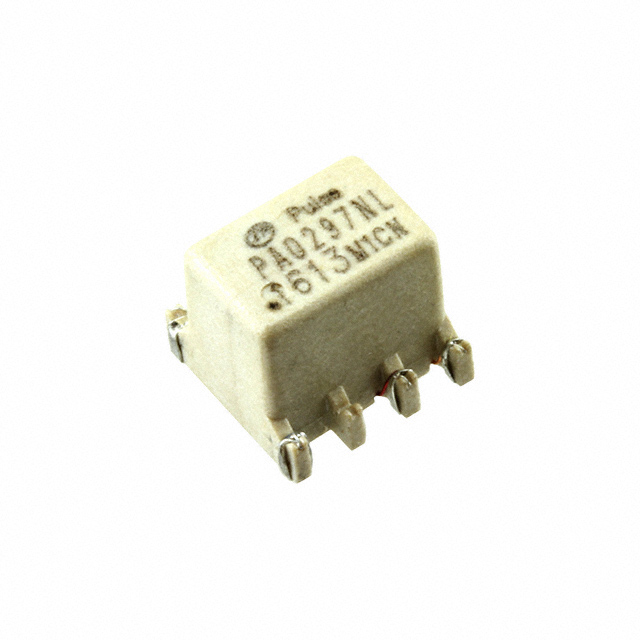

PA0297NLT
PULSE XFMR 2:1:1 1200UH
Manufacturer: Pulse ElectronicsIC code: 553-3808-2-ND - Tape & Reel (TR) || 553-3808-1-ND - Cut Tape (CT) || 553-3808-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
1.2mH Pulse Transformer 2:1:1 Surface Mount
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 1.2mH
- Part Status
- Active
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- 27.2VµS
- Size / Dimension
- 0.355" L x 0.340" W (9.02mm x 8.64mm)
- Transformer Type
- -
- Height - Seated (Max)
- 0.300" (7.62mm)
- Operating Temperature
- -40°C ~ 130°C
- Turns Ratio - Primary:Secondary
- 2:1:1
