Description

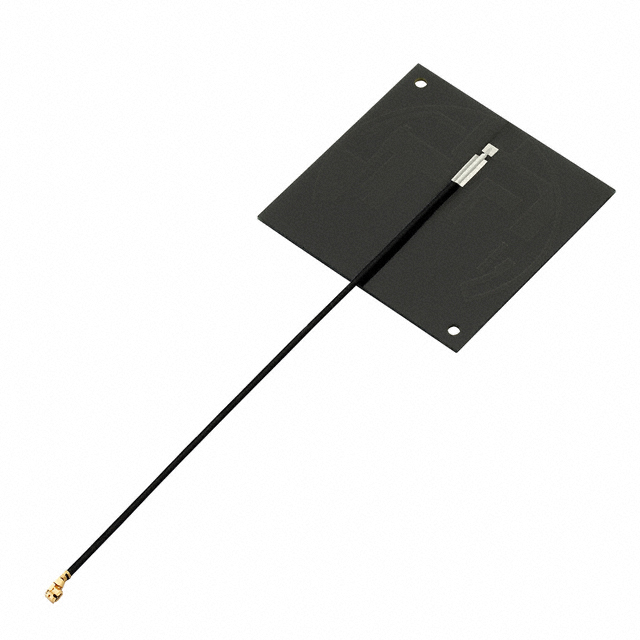

RF ANTENNA AMPS, DCS, GSM, PCS Flat Patch U.FL (UMCC), I-PEX MHF1 Chassis Mount
Specifications
- Gain
- 0dBi
- VSWR
- 2
- Series
- TheStripe™
- Features
- Cable - 100mm
- Packaging
- Bag
- Part Status
- Obsolete
- Power - Max
- 10 W
- Return Loss
- -12dB, -25dB, -12dB, -10dB
- Termination
- U.FL (UMCC), I-PEX MHF1
- Antenna Type
- Flat Patch
- Applications
- AMPS, DCS, GSM, PCS
- Height (Max)
- 0.031" (0.80mm)
- Manufacturer
- Taoglas Limited
- Mounting Type
- Chassis Mount
- Frequency Group
- UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency Range
- 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
- Number of Bands
- 4
- Ingress Protection
- -
