Description

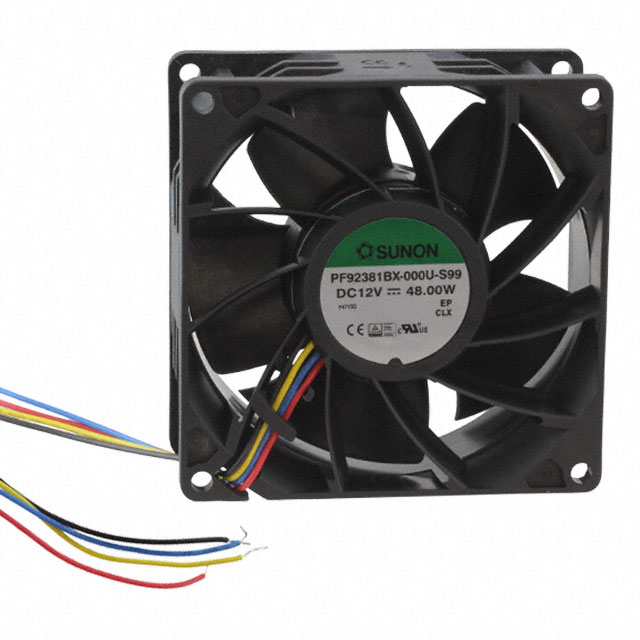

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 182.4 CFM (5.11m³/min) 4 Wire Leads
Specifications
- Mfr
- Sunon Fans
- RPM
- 13000 RPM
- Noise
- 72.1dB(A)
- Width
- 38.00mm
- Series
- PF
- Weight
- 0.463 lb (210.01 g)
- Air Flow
- 182.4 CFM (5.11m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, PWM Control, Speed Sensor (Tach)
- Packaging
- Box
- Part Status
- Obsolete
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
Voltage Range10.2 ~ 13.2VDC Approval AgencyCE, CUR, TUV, UL Static Pressure2.940 in H2O (732.3 Pa) Lifetime @ Temp.70000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT) Material - FramePolybutylene Terephthalate (PBT) Size / DimensionSquare - 92mm L x 92mm H Base Product NumberPF92381BX Current Rating (Amps)4.00A Operating Temperature14 ~ 158°F (-10 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥148.36000 |
| Box | 10 | ¥121.69500 |
| Box | 25 | ¥119.81400 |
