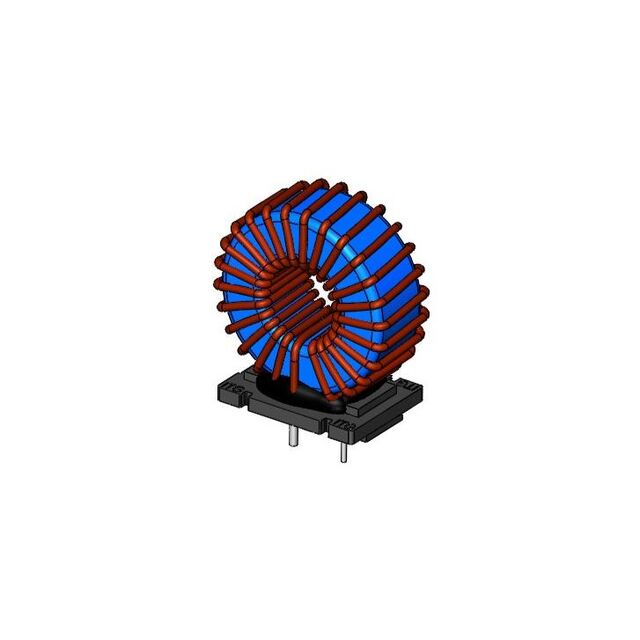

PFC212236D-101K
PFC Choke 105uH 52.3A 14.50mOhm
Manufacturer: ITG Electronics, Inc.IC code: 3013-PFC212236D-101K-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
105 µH Unshielded Toroidal Inductor 24.3 A 14.5mOhm Max Vertical, 4 PC Pin
Specifications
- Mfr
- ITG Electronics, Inc.
- Type
- Toroidal
- Series
- PFC212236D
- Ratings
- -
- Features
- -
- Q @ Freq
- -
- Packaging
- Bulk
- Shielding
- Unshielded
- Tolerance
- ±10%
- Inductance
- 105 µH
- Part Status
- Active
- Mounting Type
- Through Hole
- Package / Case
- Vertical, 4 PC Pin
- Material - Core
- Alloy Powder
- Size / Dimension
- 2.122" L x 1.220" W (53.90mm x 31.00mm)
- DC Resistance (DCR)
- 14.5mOhm Max
- Current Rating (Amps)
- 24.3 A
- Height - Seated (Max)
- 2.362" (60.00mm)
