Description

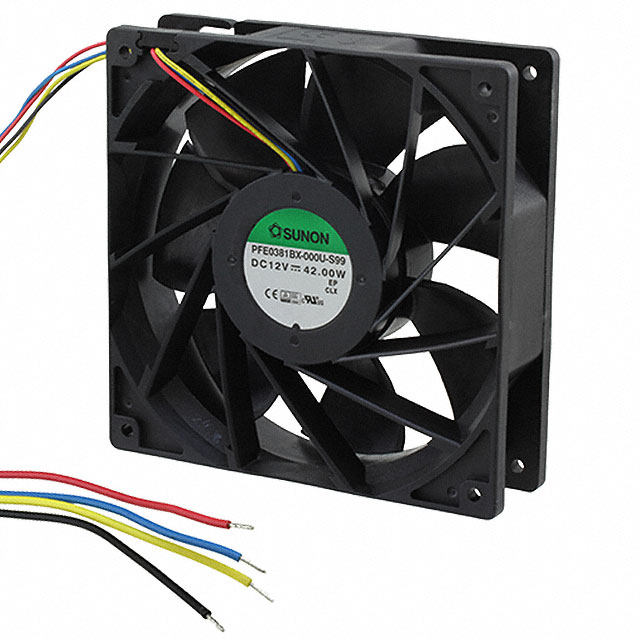

Fan Tubeaxial 12VDC Square - 140mm L x 140mm H Ball 297.9 CFM (8.34m³/min) 4 Wire Leads
Specifications
- Mfr
- Sunon Fans
- RPM
- 6800 RPM
- Noise
- 70.3dB(A)
- Width
- 38.00mm
- Series
- PFE
- Weight
- 1.1 lbs (499.0 g)
- Air Flow
- 297.9 CFM (8.34m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, PWM Control, Speed Sensor (Tach)
- Packaging
- Box
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
Voltage Range10.2 ~ 13.2VDC Approval AgencyCE, CUR, TUV, UL Static Pressure2.050 in H2O (510.6 Pa) Lifetime @ Temp.70000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT) Material - FramePolybutylene Terephthalate (PBT) Size / DimensionSquare - 140mm L x 140mm H Base Product NumberPFE0381BX Current Rating (Amps)3.30A Operating Temperature14 ~ 158°F (-10 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥519.53000 |
| Box | 12 | ¥414.86833 |
| Box | 36 | ¥377.42444 |
